Electric vehicle charging piles are essential infrastructure for EVs. This essay explores their working principles, types, and usage process.

What is an EV charging pile?

An electric vehicle charging pile is a special device that provides electric energy for electric vehicles. It is usually fixed on the ground or wall and can be used in public places, residential areas or special charging stations.

The main function of the charging pile is to convert AC power into DC power to charge the battery of an electric vehicle.

Working principle of EV charging piles

The basic working principle of the charging pile is as follows:

  1. The charging pile obtains AC power from the power grid.
  2. The internal rectifier converts AC power into DC power.
  3. The control system adjusts the voltage and current to meet the charging needs of different models.
  4. The DC power is transmitted to the vehicle battery through the charging interface.
  5. During the charging process, the charging pile communicates with the vehicle to monitor the charging status and safety.

Usage process of EV charging piles

The general steps for using a charging station are as follows:

  1. Park the vehicle next to the charging station.
  2. Open the vehicle charging port cover.
  3. Insert the charging gun into the vehicle charging port.
  4. Follow the prompts on the charging station to authenticate (swipe card, scan code, etc.).
  5. Select the charging mode (such as fast charging or slow charging).
  6. Confirm to start charging.
  7. After charging is completed, disconnect the charging gun and settle the fee.

What types of EV charging systems are there?

There are mainly the following types:

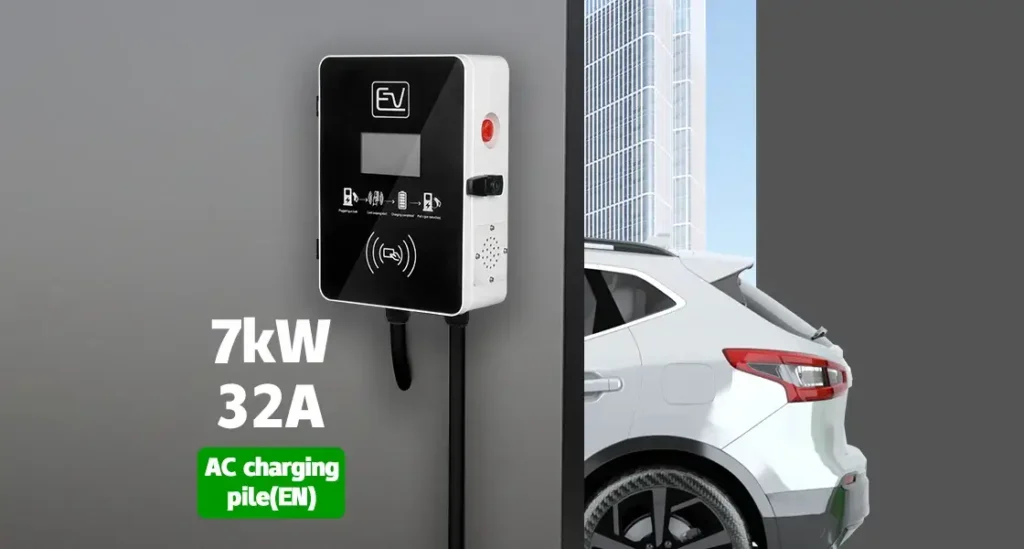

  1. AC slow charging: suitable for home and office places, with low charging power.
  2. DC fast charging: suitable for public charging stations, with fast charging speed.
  3. Wireless charging: non-contact charging through electromagnetic induction.
  4. Swap station: directly replace the entire battery pack, with the fastest charging speed.

Choosing the right charging pile for your electric vehicle

The following factors should be considered when choosing a charging pile:

  1. Vehicle compatibility: Make sure the charging port matches the vehicle.
  2. Charging power: Choose the appropriate power according to daily use needs.
  3. Installation location: Consider household power conditions and parking location.
  4. Intelligent functions: Such as remote control, billing management, etc.
  5. Safety performance: Choose products with overload, short circuit and other protection functions.
  6. After-sales service: Consider the manufacturer’s maintenance and upgrade support.

FAQs

Q1: How long does it take to charge an electric car?

A1: Charging time depends on multiple factors, including the type of charging station, vehicle battery capacity, etc. Generally speaking:

  • Home AC slow charging (7.4kW) usually takes 6-8 hours to fully charge.
  • Public DC fast charging (above 50kW) can charge the battery to about 80% in 30-60 minutes.

Q2: Will frequent use of fast charging affect battery life?

A2: Excessive use of DC fast charging may have a certain impact on battery performance and life. It is recommended to use slow charging as the main method in daily life, and only use fast charging when necessary, such as when traveling long distances.

Q3: How do I find a public charging station?

A3: You can do it in the following ways:

  • Use a dedicated charging station APP
  • Check navigation software (such as Google Maps)
  • Focus on common locations such as shopping malls, parking lots, etc.

Q4: How do I pay for a public charging station?

A4: Common payment methods include:

  • Specialized charging card
  • Mobile APP scan code payment
  • Credit card swipe

Different charging networks may have different payment models.
