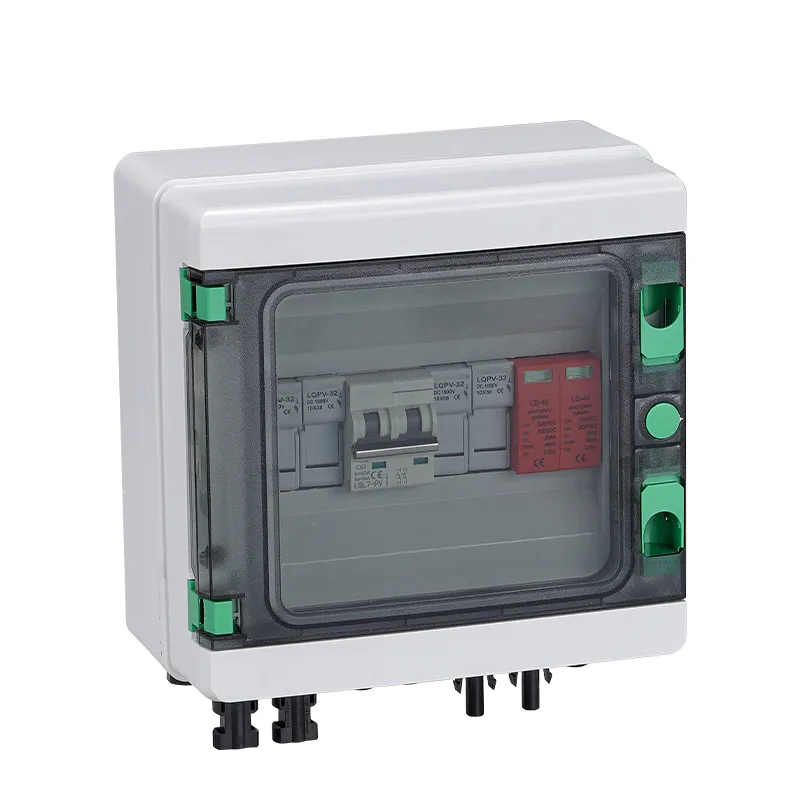

Plastic DC combiner box 2 in 1 out
DC combiner box 2 in 1 out
- It offers a full range of solar photovoltaic combiner boxes for residential, commercial and utility scale renewable energy projects.
- Plastic DC combiner box with 1 in and 1 out provides flexible configuration and is suitable for monocrystalline solar panels, polycrystalline solar panels and thin film solar panels. The rated current of photovoltaic fuses, circuit breakers and load isolation switches are available for selection.
- The shell is made of plastic.
- Plastic DC combiner box 1 in and 1 out specifications
Additional information
Share To:
Product Parameter (Specification)
| Model | DC500V2-1 |
| Max DC System Voltage | 500V |
| Max Input Strings | 2 |
| Output String Count | 1 |
| Max Output Switch Current | 32A |
| Maximum input current per string | 15A |
| Lightning Protection | Yes |
| Relative Humidity | 0-95%, Non-Condensing |
| Rated Discharge Current | 20kA |
| Max Discharge Current | 40kA |
| Voltage Protection Levels | 2.0kV |
| Continuous Operating Voltage (Uc) | 500V |
| Protection Rating | lP65 |
| Material | ABS+PC |
| Installation | Wall-Mounted |
| Operating Temperature | -25℃to +55℃ |
| Altitude | Up to 2km |
| Test Category | Ⅱ |

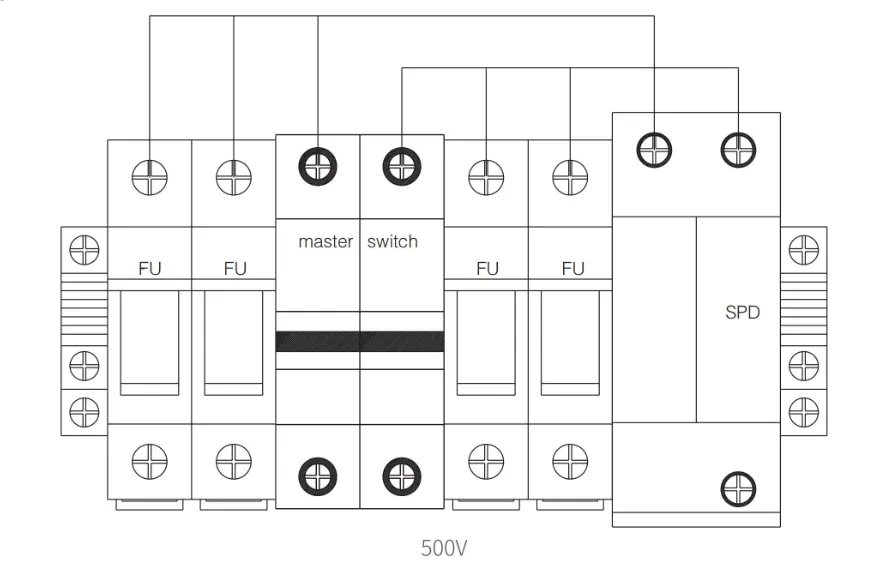

Schematic diagram

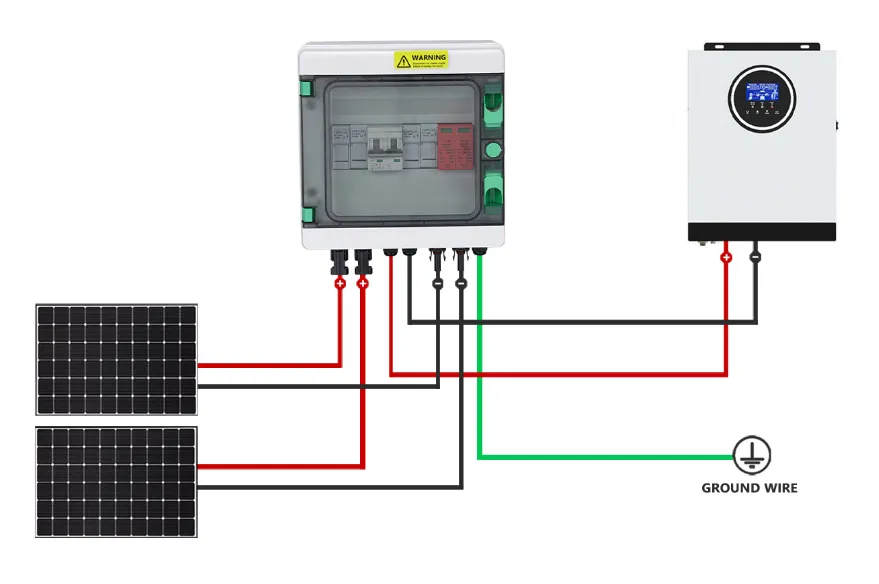

Wiring diagram
