Plastic DC combiner box 2 in 2 out

DC combiner box 2 in 2 out

It offers a full range of solar photovoltaic combiner boxes for residential, commercial and utility scale renewable energy projects.
Plastic DC combiner box with 1 in and 1 out provides flexible configuration and is suitable for monocrystalline solar panels, polycrystalline solar panels and thin film solar panels. The rated current of photovoltaic fuses, circuit breakers and load isolation switches are available for selection.
The shell is made of plastic.
Plastic DC combiner box 1 in and 1 out specifications

Share To:

Product Parameter (Specification)

Model	DC500V2-1
Max DC System Voltage	500V
Max Input Strings	2
Output String Count	2
Max Output Switch Current	32A
Maximum input current per string	15A
Lightning Protection	Yes
Relative Humidity	0-95%, Non-Condensing
Rated Discharge Current	20kA
Max Discharge Current	40kA
Voltage Protection Levels	2.0kV
Continuous Operating Voltage (Uc)	500V
Protection Rating	lP65
Material	ABS+PC
Installation	Wall-Mounted
Operating Temperature	-25℃to +55℃
Altitude	Up to 2km
Test Category	Ⅱ

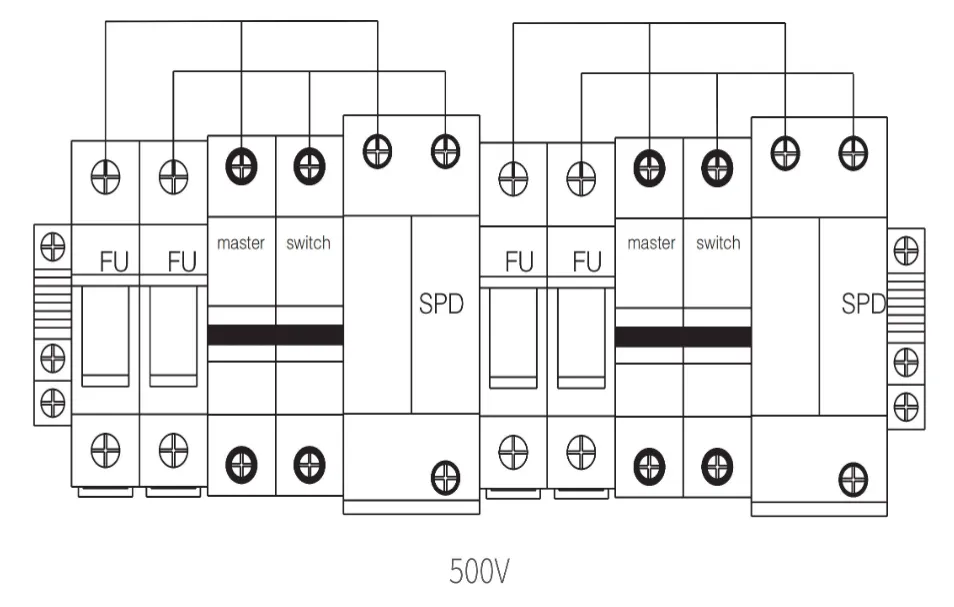

Schematic diagram
