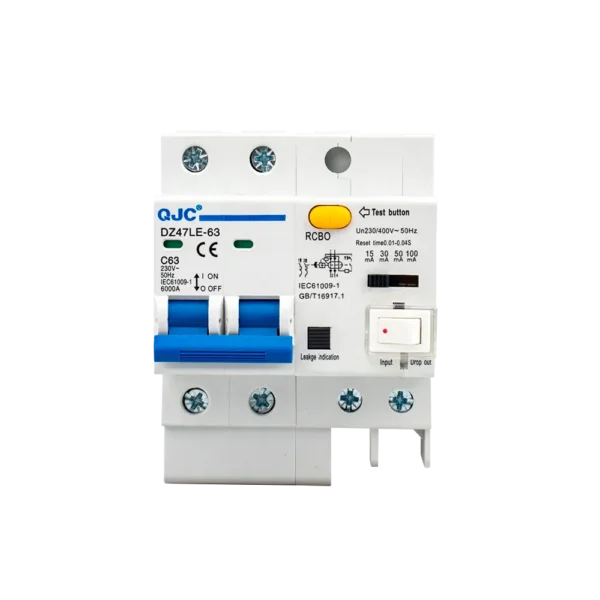

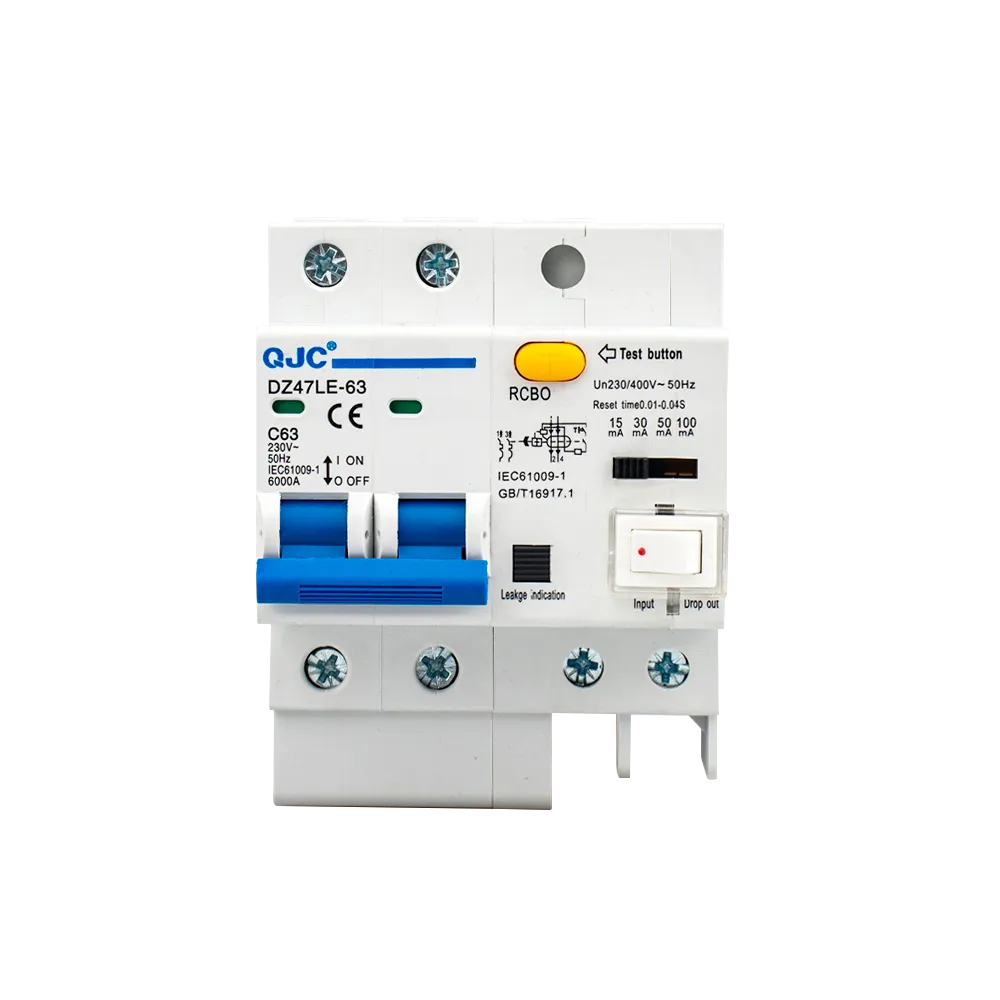

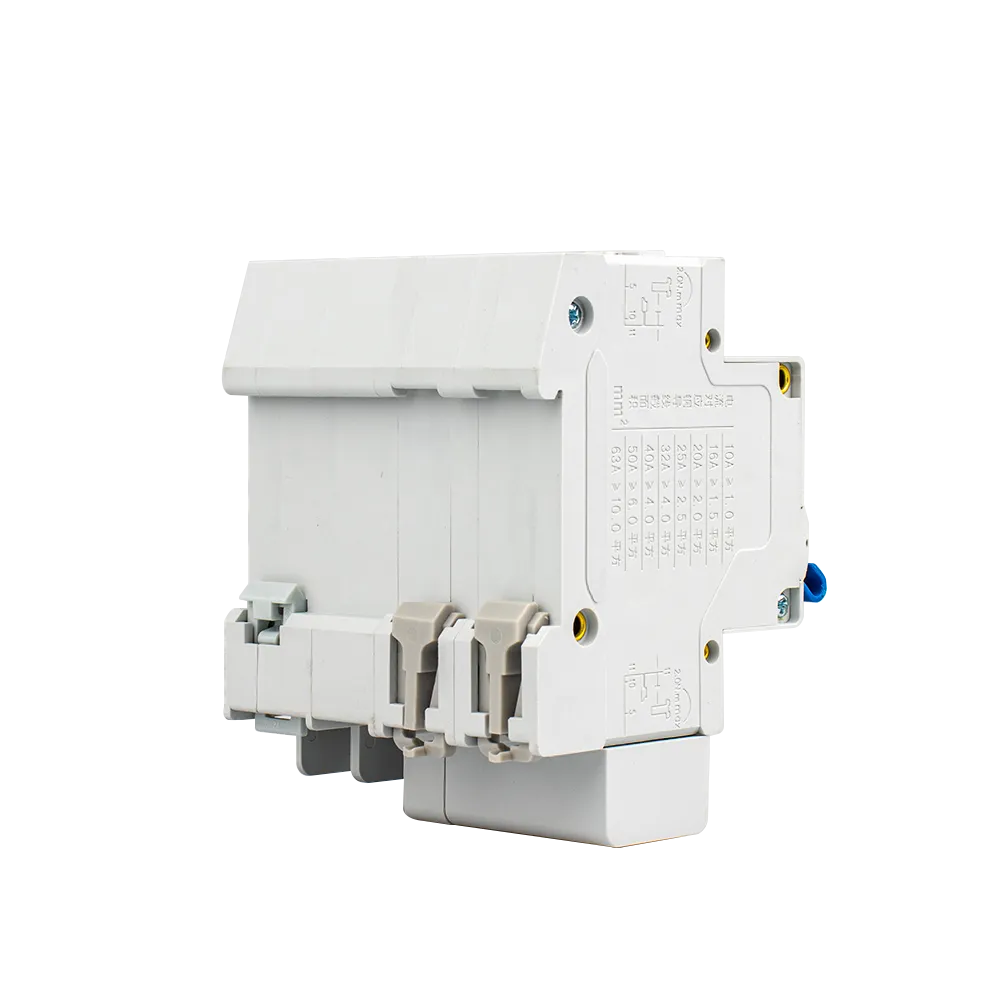

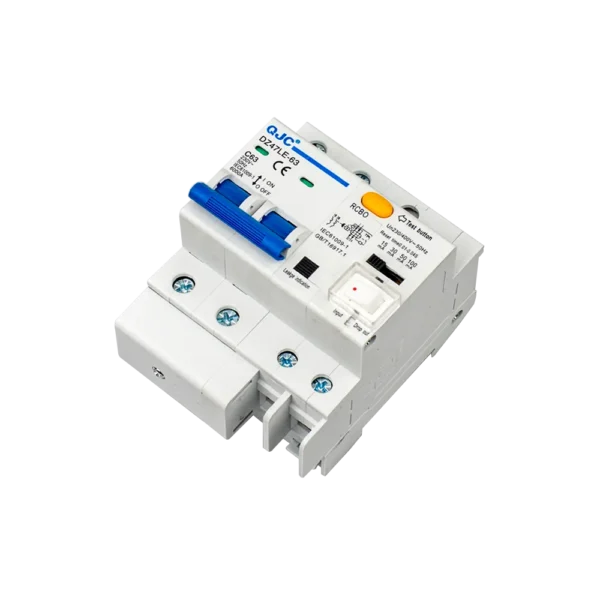

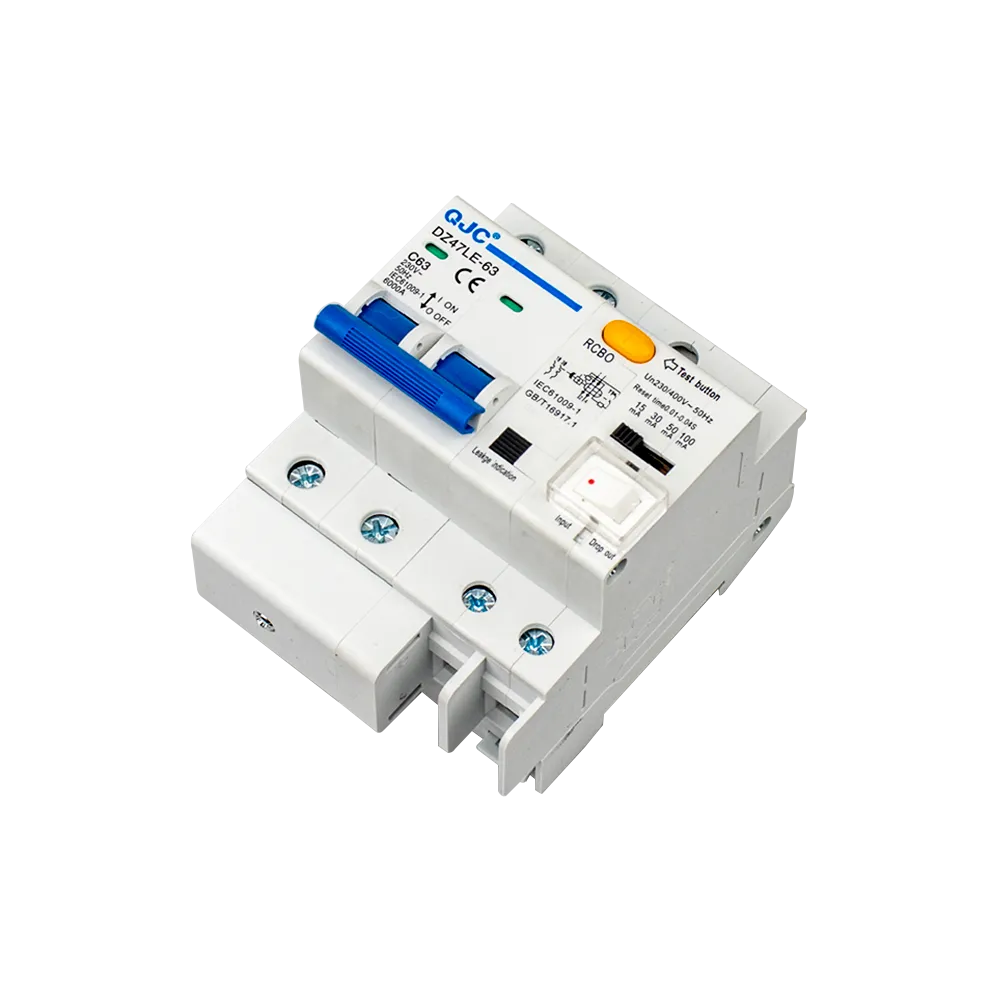

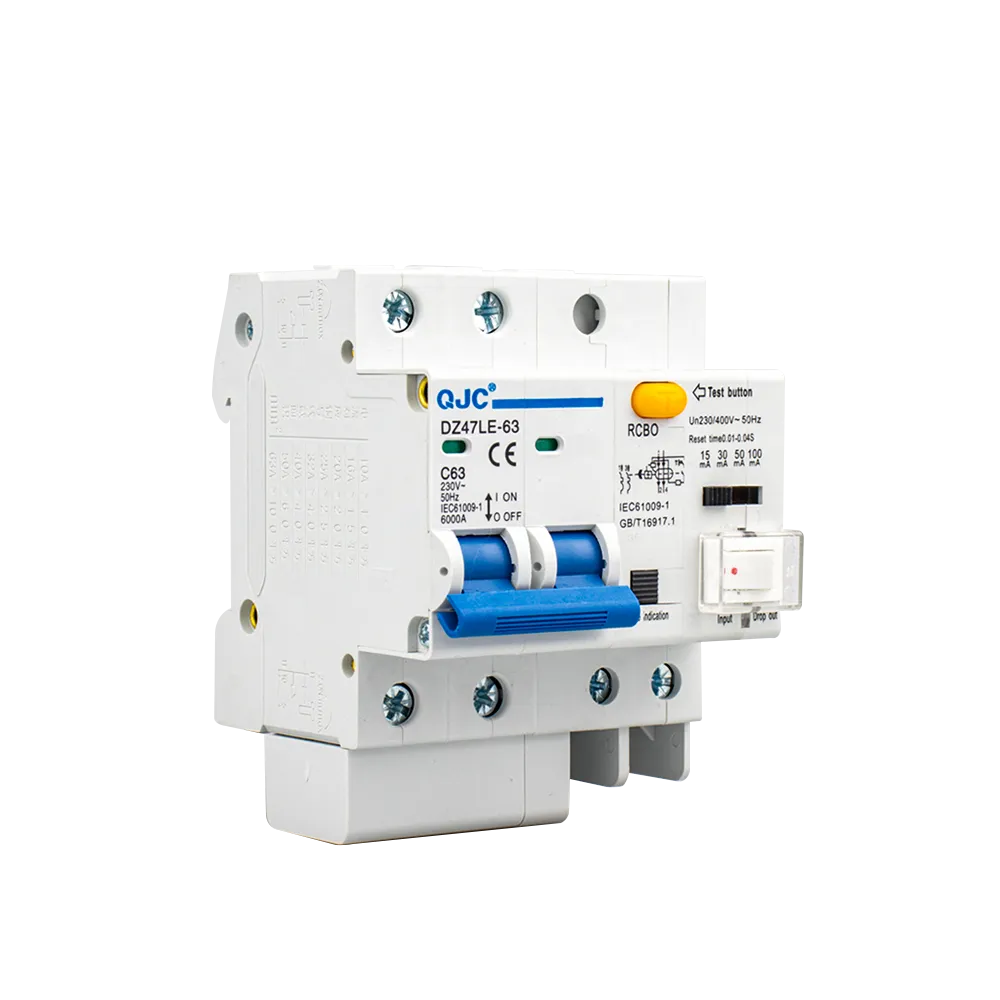

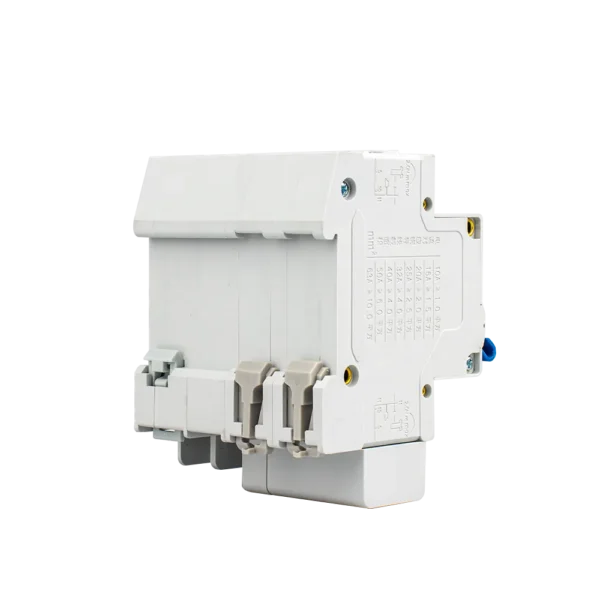

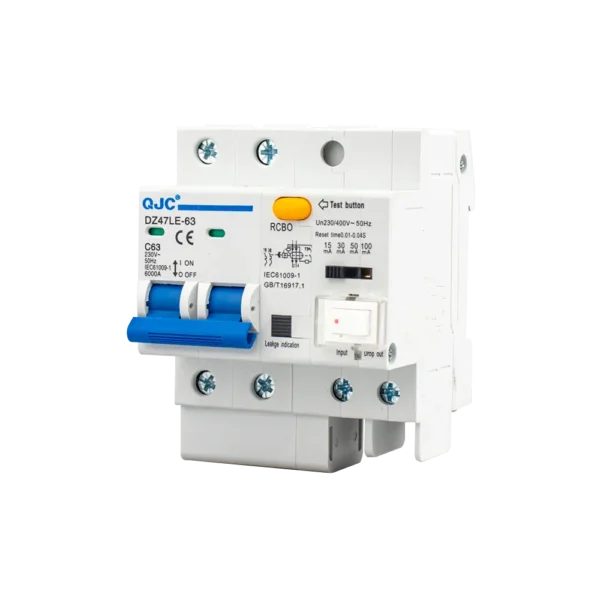

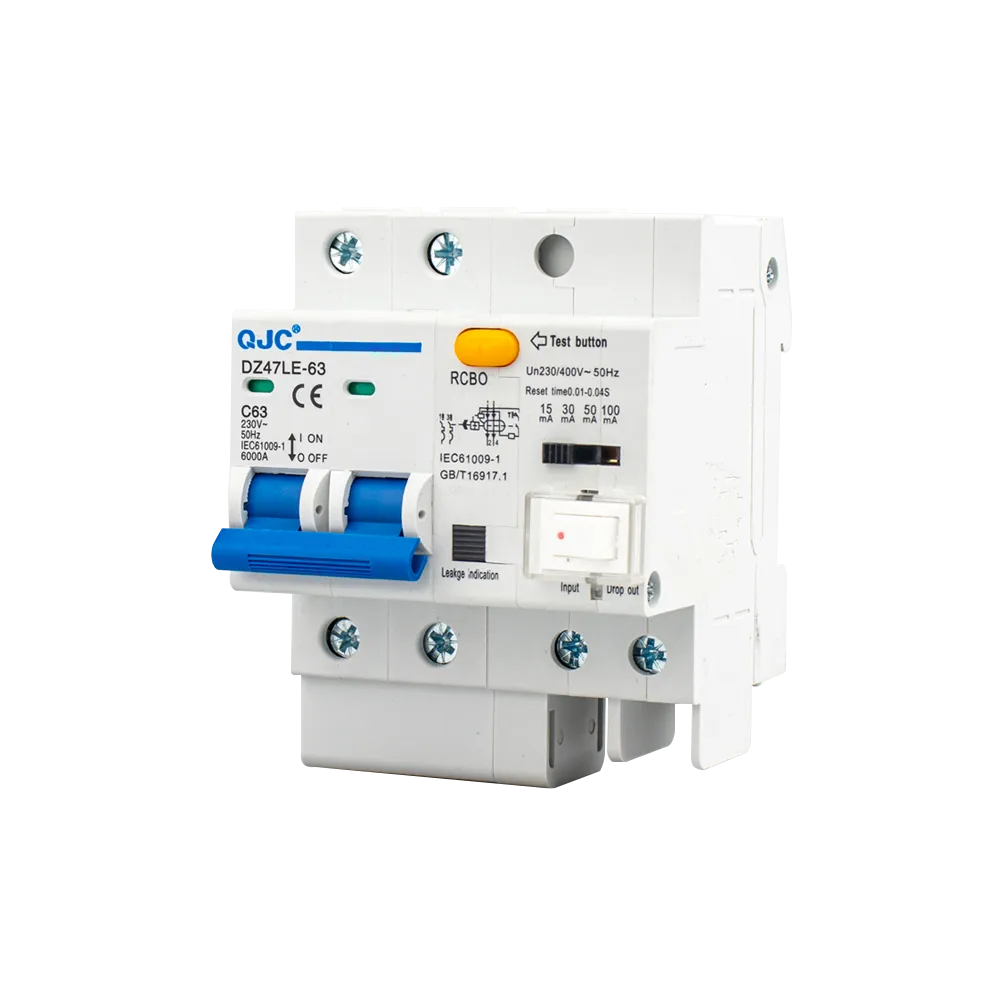

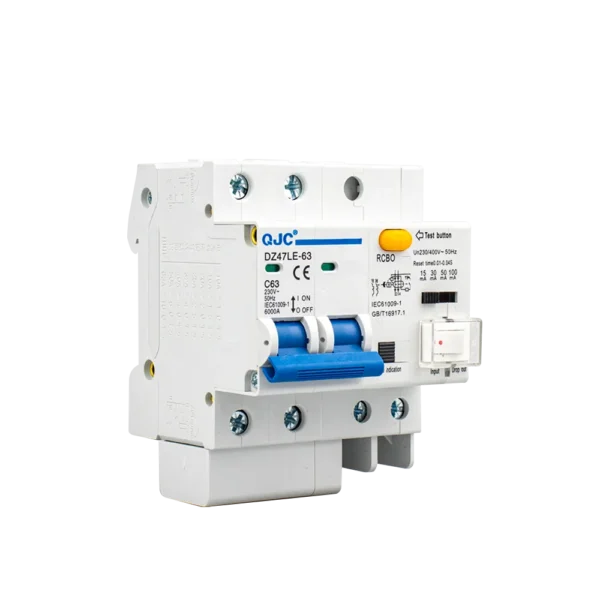

DZ47LE-63 6KA RCBO With Switch Manufacturers
DZ47LE-63
DZ47LE-63 Type Electronic type residual current operated circuit-breakers (RCBO)is applicable to a line of AC 50/60Hz, rated voltage 230V for single pole two-wire, 2-pole or 400V for 3-pole, 3-pole 4-wire,4-pole and rated current up to 40A. It can protect the line and motor from overload and short circuit. It can also be used for infrequent line conversion and infrequent motor start. It conforms with the standards of IEC61009.
Additional information
Share To:
Normal Use And Installation Conditions
- 1.Ambient air: -5℃~+40℃, 24h within an average of not more than +35℃
- Altitude: not more than 2000m;
- Atmospheric conditions: The air relative humidity at the installation site should not exceed 50% at +40℃, and the relative humidity should not exceed 90% when the monthly average minimum temperature of the when the month does not exceed +25℃.
- Installation categories: ll, III grade;
- Pollution Degree: Grade 2;
- installation type: the use of standard rail installation;
- installation conditions: small disconnector general vertical mounting handle up for the power position, the installation should be no significant impact and vibration.
Product Parameter (Specification)
| Standard | IEC61009 | |
| Type | DZ47LE-63 | |
| Poles | 1P+N,2P | 3P,3P+N,4P |
| Rated current (A) | 6,10,16,20,25,32,40,50,63 | |
| Rated voltage | 230/240 | 400/415 |
| Rated short circuit breaking capacity Icn(kA) | 6-32A:6/40-63:4 | |
| Rated residual making/breaking capacity lΔm(A) | 2000 | |
| Rated residual action current lΔn(A) | 0.03, 0.05, 0.1, 0.3 | |
| Rated residual non-action current lΔno(A) | 0.5IΔn | |
Applicable Conducting Wire
| Rated current (A) | 1-6 | 10 | 16,20 | 25 | 32 | 40,50 | 63 |
| Norminal cross section of wire (mm2) | 1 | 1.5 | 2.5 | 4 | 6 | 10 | 16 |

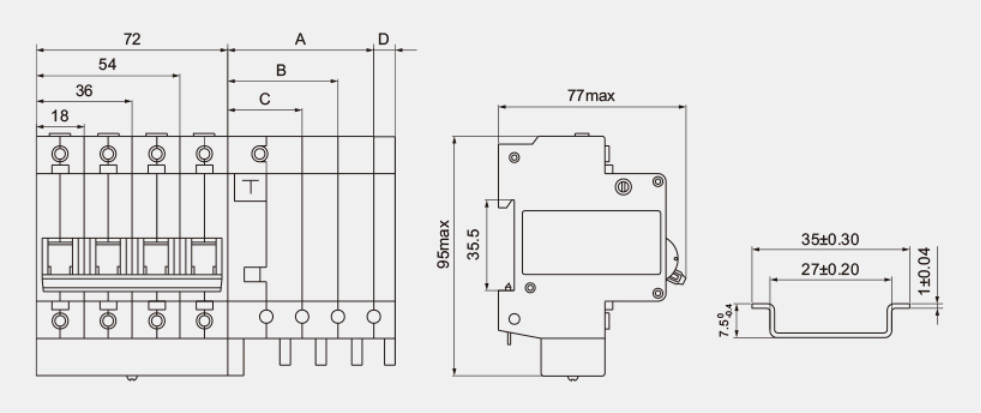

| Model | A | B | C | D | 1P+N | 2P | 3P | 3P+N | 4P |
| DZ47LE-63 | 39 | 30 | 21 | 6 | 18+27 | 36+27 | 54+36 | 54+45 | 72+45 |
