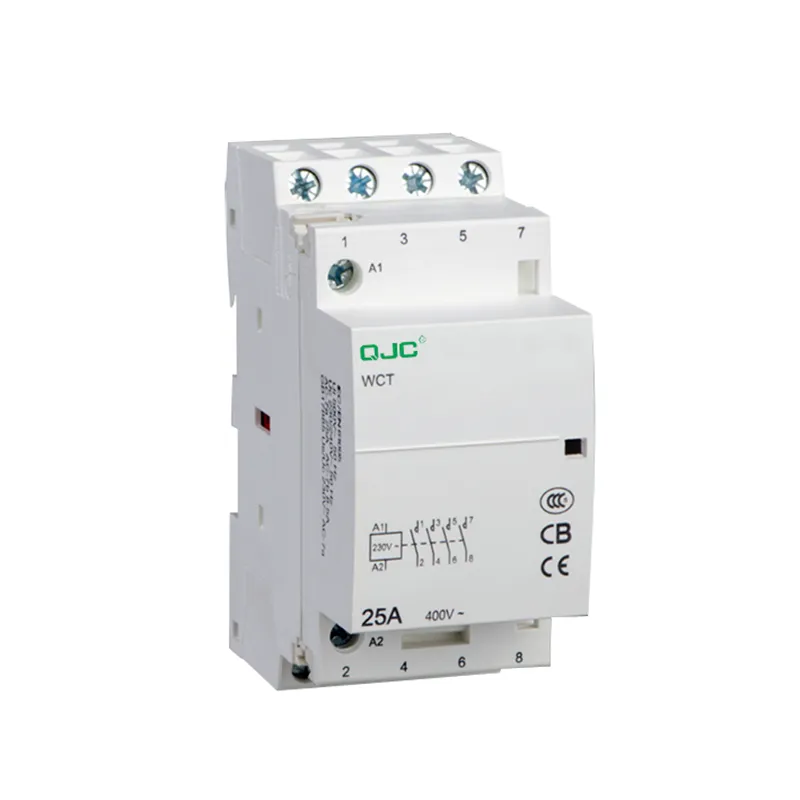

Household contactor-4P
Household contactor-4P
- WCT contactors can be used to remote control applications in alternative networks:
- lighting, heating,ventilation,roller blinds,sanitary hot water
- mechanical ventilation systems, etc
- load-shedding of non-priority circuits
Additional information
Share To:
| Type | Width in 9 mm modules | ||||
| 1P | Rating(In) AC-7a | Rating(In) AC-7b | Control voltage (VAC)(50Hz) | Contact | |
| 1P | 16A | 6A | 24 | 1 NO 1 NC | 2 |
| 20A | 8.5A | 110 | |||
| 100A | 8.5A | 230 | |||
| Type | ||||||
| Rating(In) | Control voltage (VAC)(50Hz) | Consumption | Max. power | |||
| AC-7a | AC-7b | Holding | Inrush | |||
| 1P | 25A | 8.5A | 230-240 | 2.7VA | 9.2VA | 1.2W |
| Type | |||||
| 4P | Rating(In) AC-7a | Rating(In) AC-7b | Control voltage (VAC)(50Hz) | Contact | |
| 16A | 6A | 24 110 230 | 4NO 4NC 2NO+2NC 3NO+1NC | 4 | |
| 20A | 8.5A | ||||
| 25A | 8.5A | ||||
| 32A | 15A | 24 110 230 | 4NO 4NC 2NO+2NC 3NO+1NC | 6 | |
| 40A | 15A | ||||
| 63A | 20A | ||||
| 100A | – | 24 110 230 | 4NO 4NC 2NO+2NC 3NO+1NC | 12 | |
| Type | ||||||
| Raring(In) | Control voltage (VAC)(50Hz) | Consumption | Max. power | |||
| 4P | AC-7a | AC-7b | Holding | Inrush | ||
| 16A | 6A | 220…240 | 4.6VA | 34VA | 1.6W | |
| 25A | 8.5A | 24 | ||||
| 220…240 | ||||||
| 24 | ||||||
| 40A | 15A | 220…240 | 6.5VA | 23VA | 2.1W | |
| 220…240 | ||||||
| 63A | 20A | 220…240 | ||||
| 220…240 | ||||||
| 220…240 | ||||||
| 220…240 | ||||||
| 100A | – | 220…240 | 13V | 106VA | 4.2W | |
