IDA-20KW/30KW/40KW Floor-standing DC charging pile
IDA-20KW/30KW/40KW
The EV charger offered provides power to all electric vehicles. It has wall-mounted and floor-mounted designs, along with IP65 dust and waterproof housing, make it suitable for indoor and outdoor use. The AC EV charger has an output range of 16 amps to 32 amps, while the DC fast EV charger can deliver up to 260kW.
Additional information
Share To:
Product Parameter (Specification)
| Rated voltage | 380V |
| Rated frequency | 50Hz±1Hz |
| Input voltage | 380V±15% |
| Output voltage | 200V-1000V |
| Working humidity | 5-95% |
| Output maximum current | Total current 250A |
| Maximum output power | 160KW |
| letter of agreement | Cloud fast charging platform |
| Input | touch |
| gun line | 5 meters/can be customized |
| Display | 7 inch |
| monitoring platform | Integrate card issuance, operation, monitoring and maintenance |
| Dielectric strength | ≥2000V |
| leakage current | ≤3.5MA |
| Protection level | IP54 |
| Working environment | -20~50℃ |
| Interface form | GB/T 20234.3-2015 |
| Number of guns | Single gun/double gun (can be customized) |
| Metering function | Output energy meter measurement |
| Protective function | Overvoltage, short circuit, overload, leakage protection |
| Installation method | floor-standing |
| cooling method | air cooling |
| Power factor | 0.99 |
| Overall efficiency | 94% |
| Start mode | Start by swiping card, start by scanning QR code |
| Access to the Internet | Ethernet/4G |
| Overall size | 750*400*1610mm (length*width*height) |

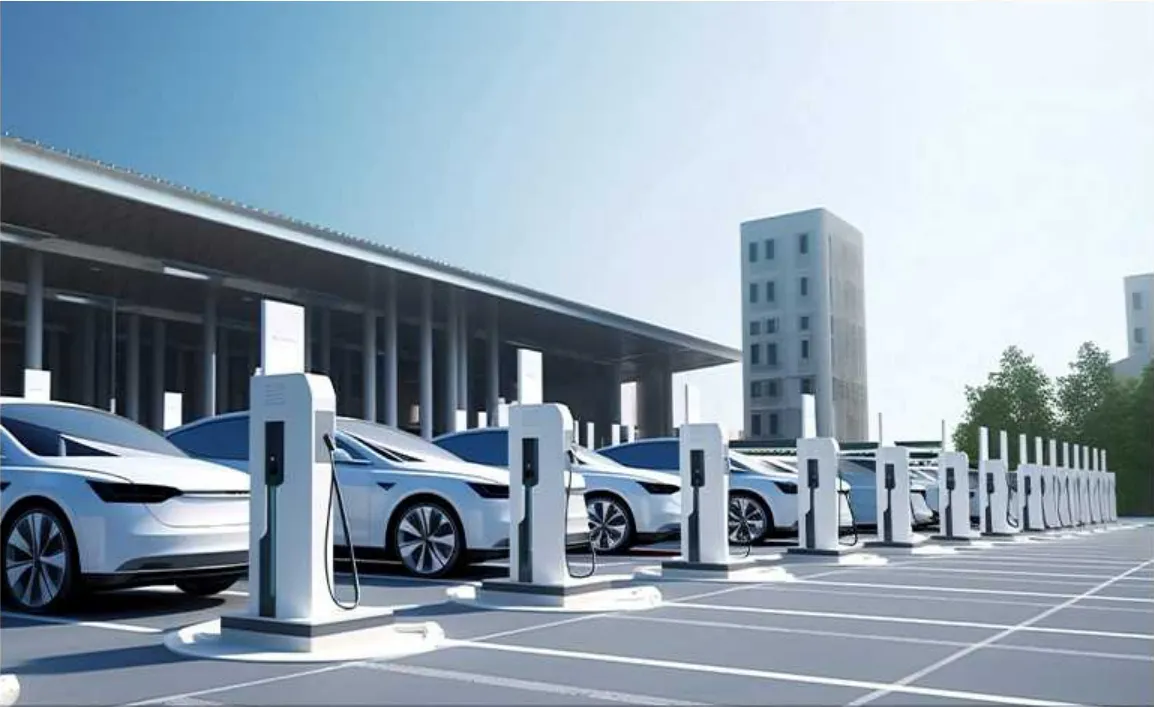

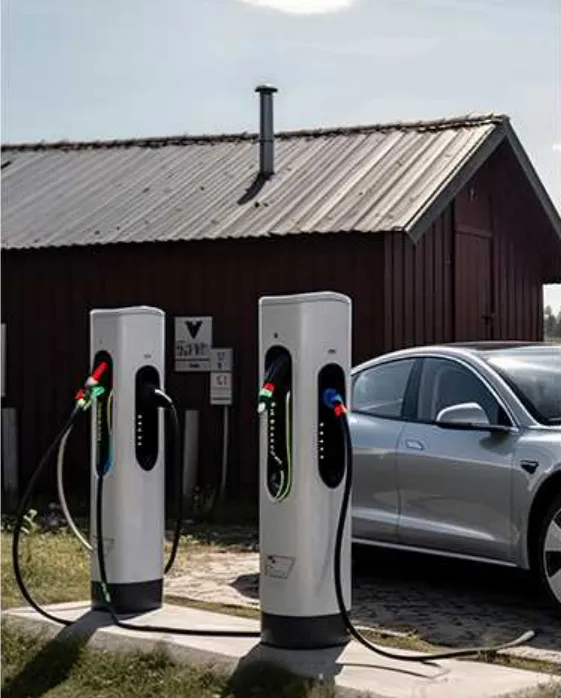

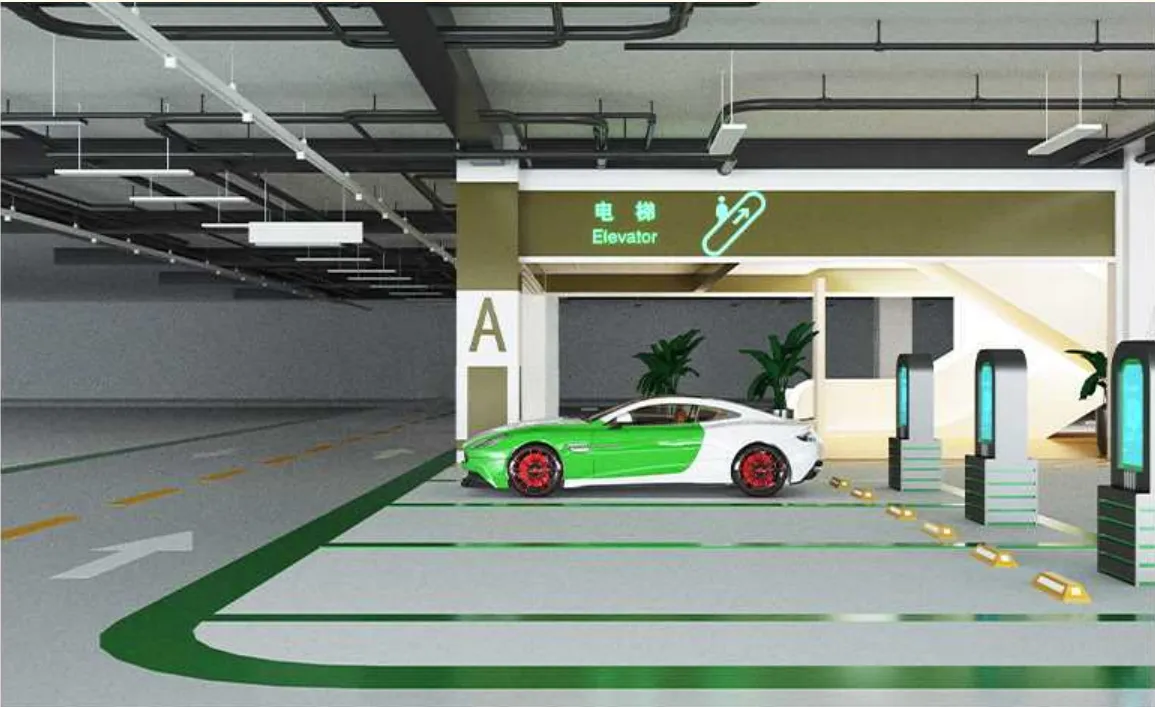

Scenes to be used
