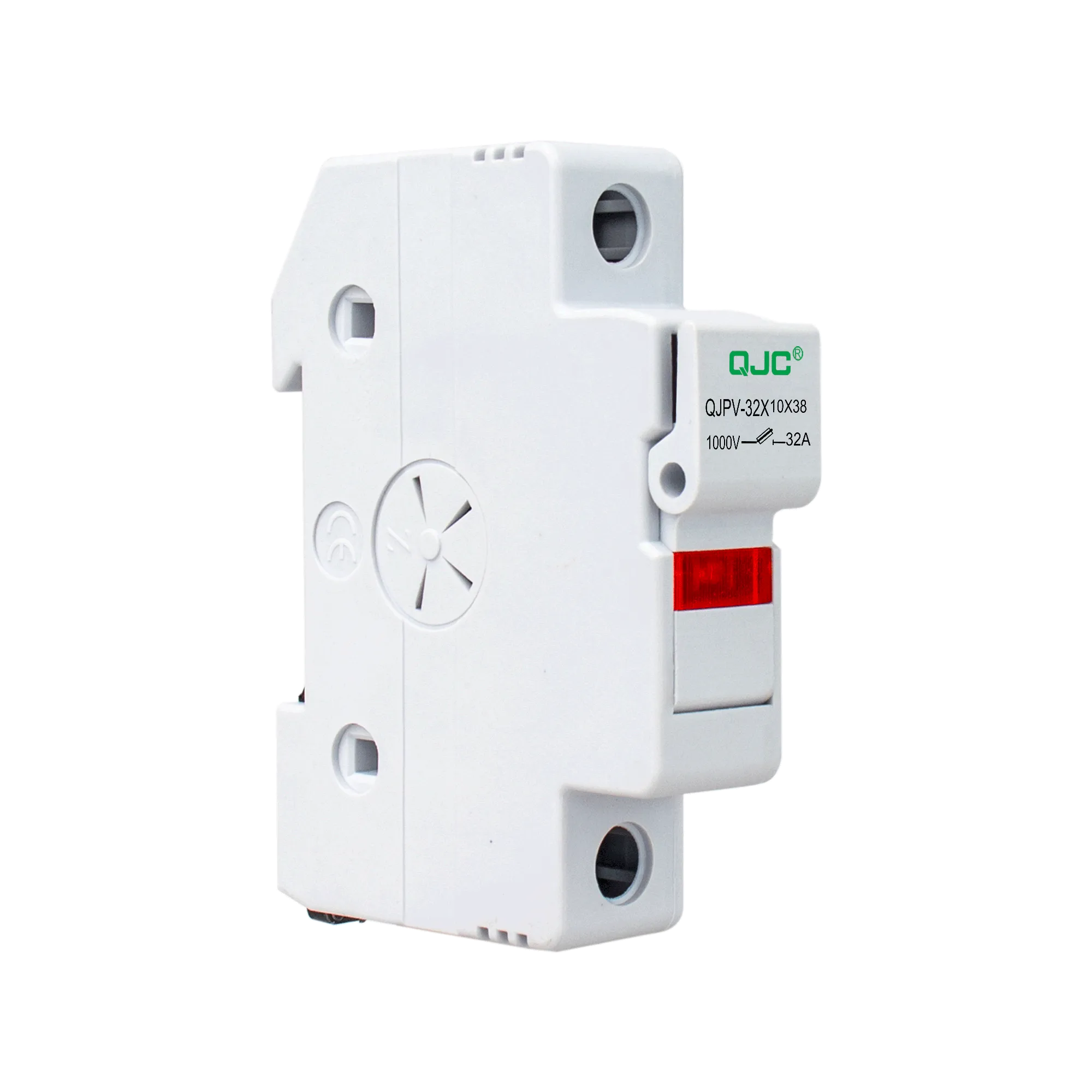

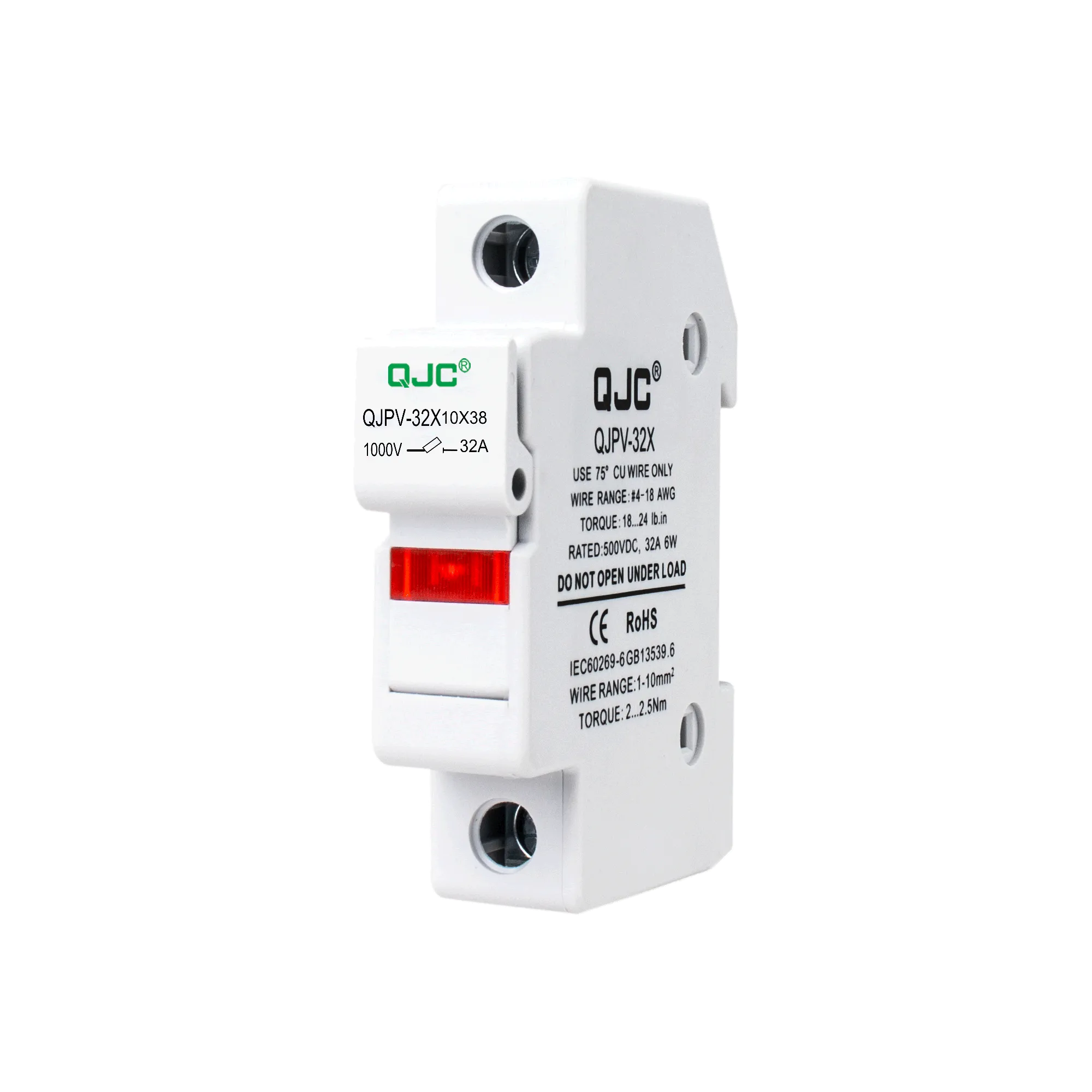

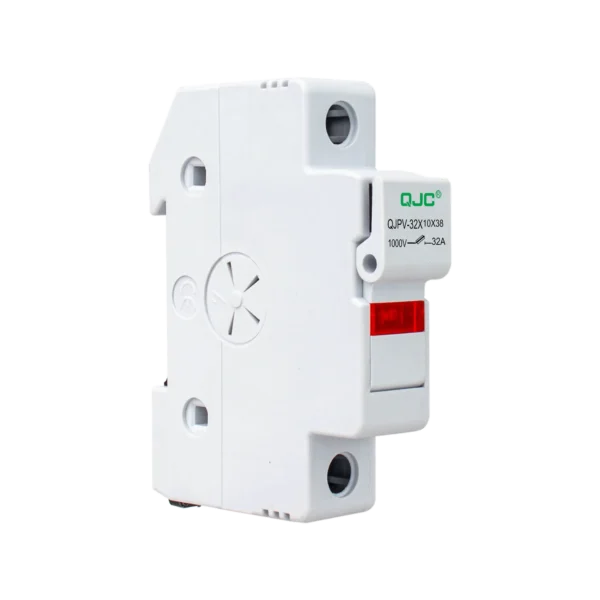

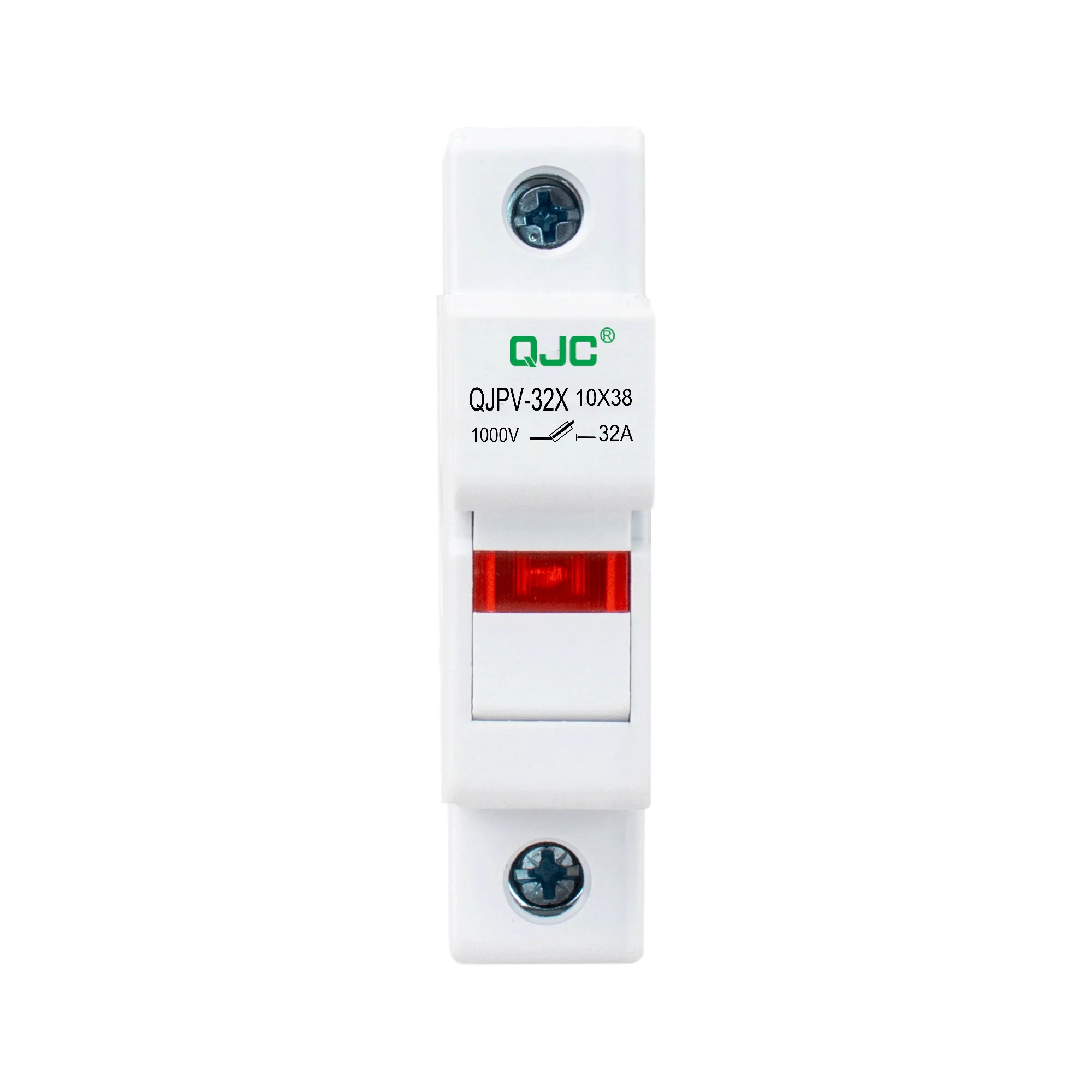

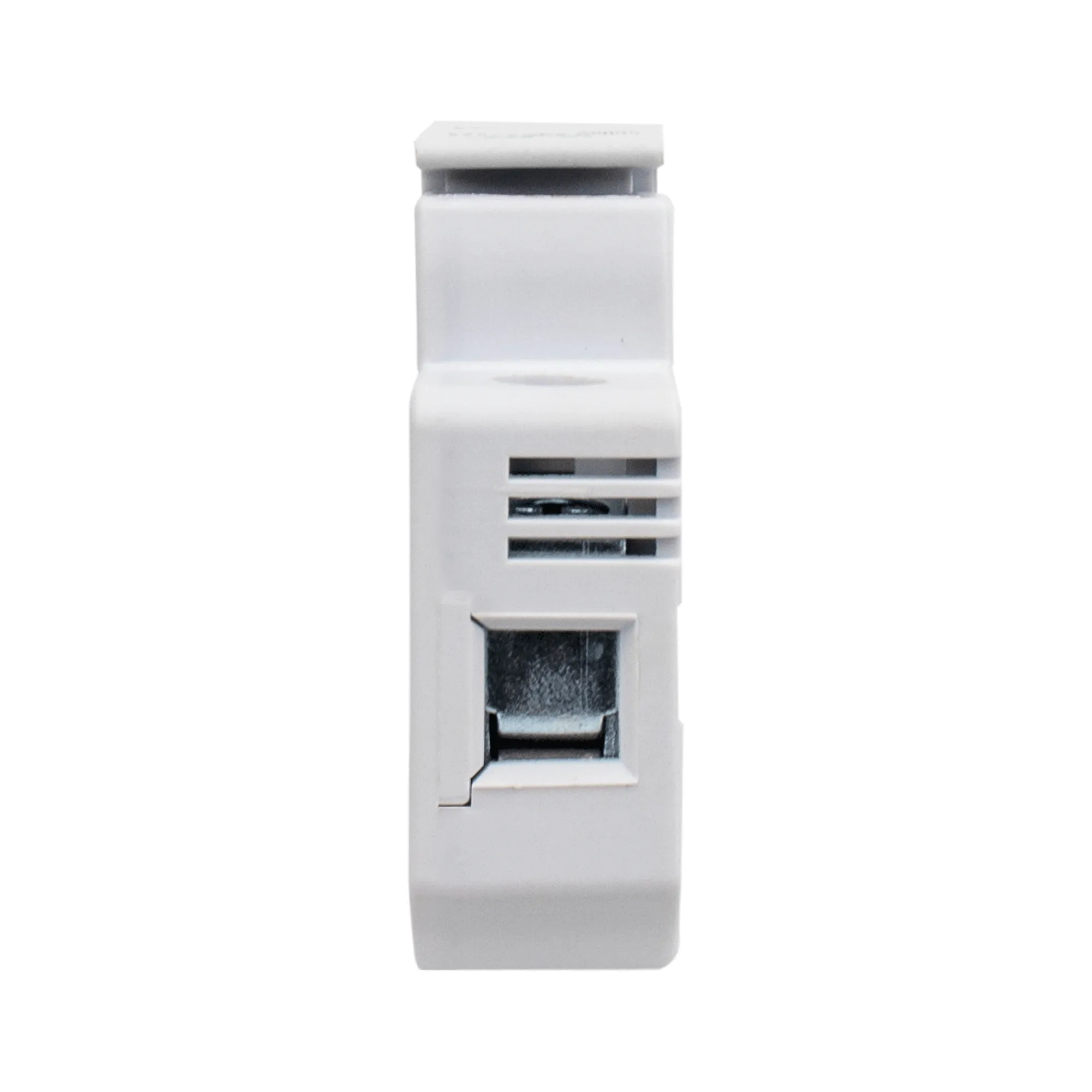

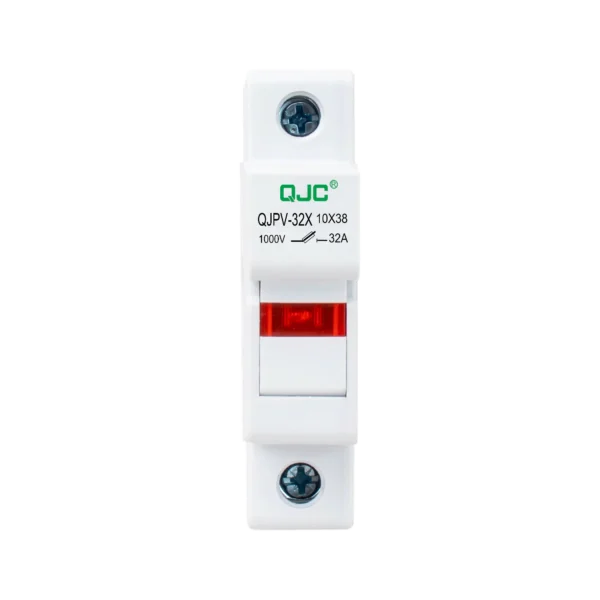

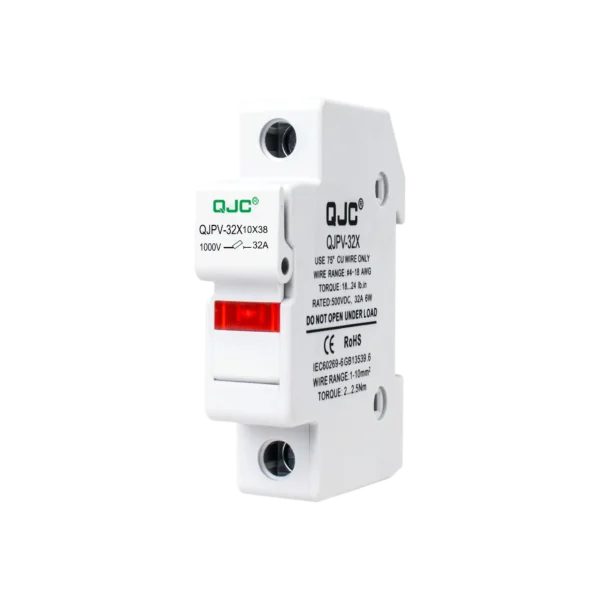

Solar PV Fuse Photovoltaic Fuse

Photovoltaic Fuse

Usage: Low Voltage, Solar PV
Safety Standards: IEC
Type: Thermal DC fuse
Short-circuit breaking capacity 33KA
Plug Design, quick change fusible core Improve efficiency
Indicator window design, signal of whether the fused core is fused or not (the light is on when it is blown, it is not on)
Overload protection and short circuit protection
Busbar design, reliable and beautiful wiring
Photovoltaic set of strings all need to be equipped with DC fuse protection circuit to remove faults

Share To:

Product Parameter (Specification)

Citation standards	IEC60269.6 GB13539.6
Model Number	QJPV-32X
Safety Standards	IEC
Rated voltage	1000V
Size	φ10mmx38mm
breaking capacity	33KA
Application	PV System
Rated impulse withstand voltage Uimp	6KA
Rated service current le	1-32A
Rated acceptable power dissipation	≤4W
