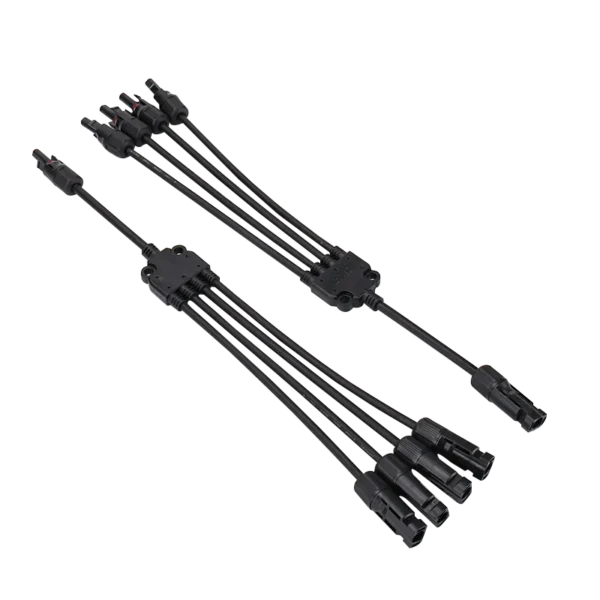

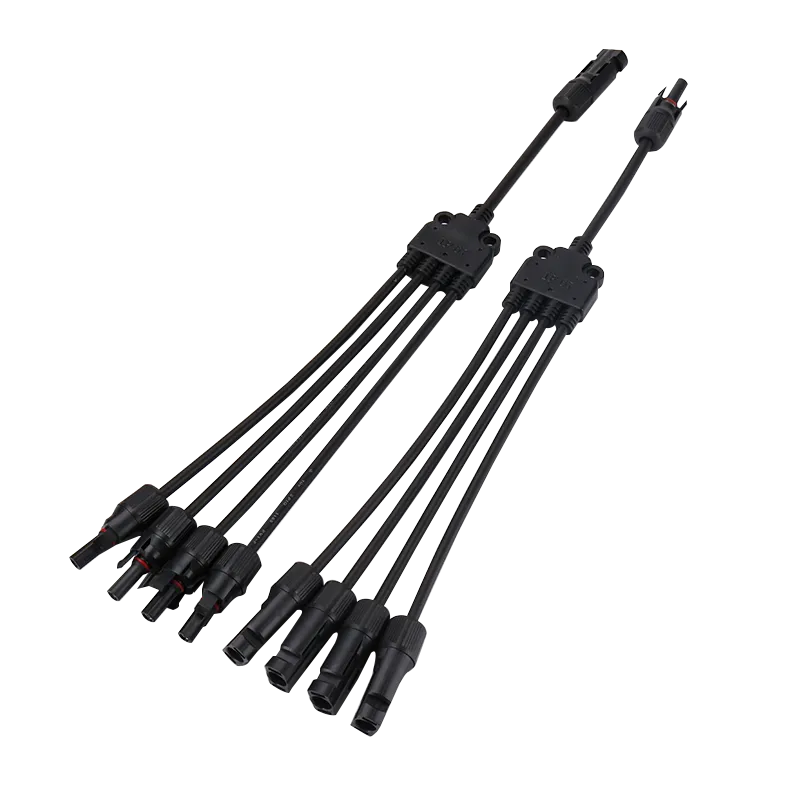

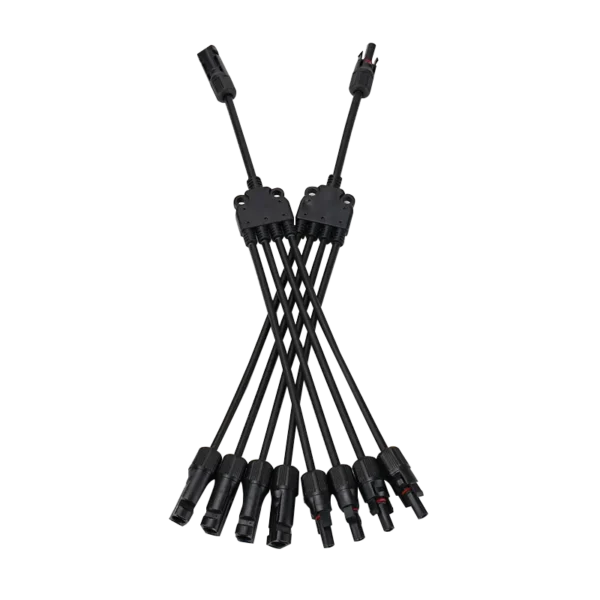

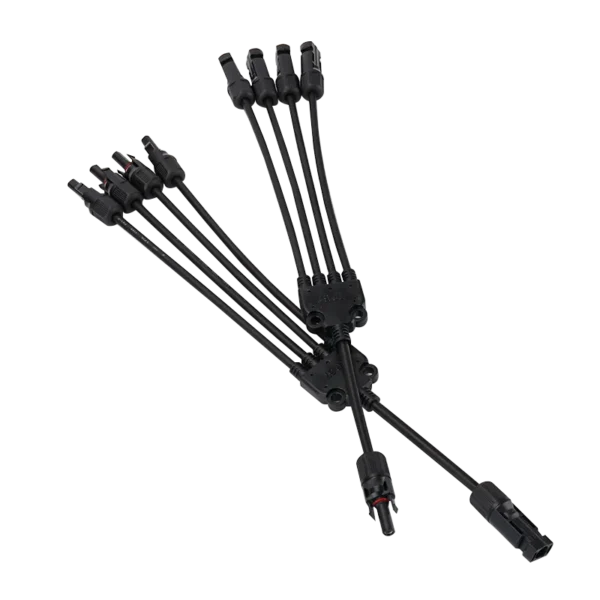

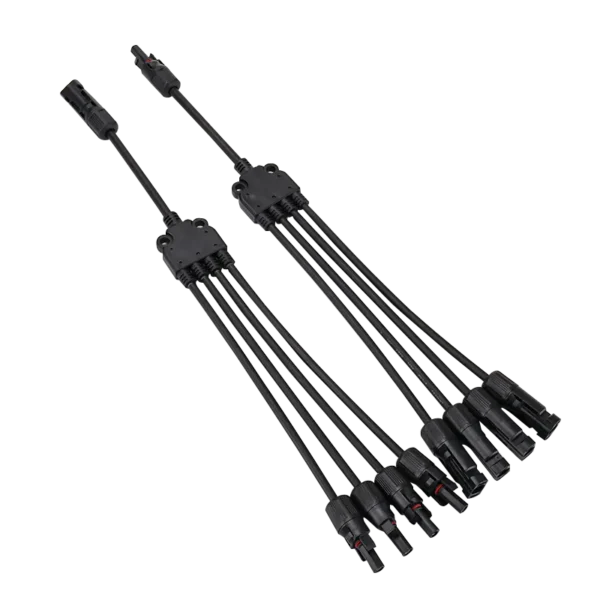

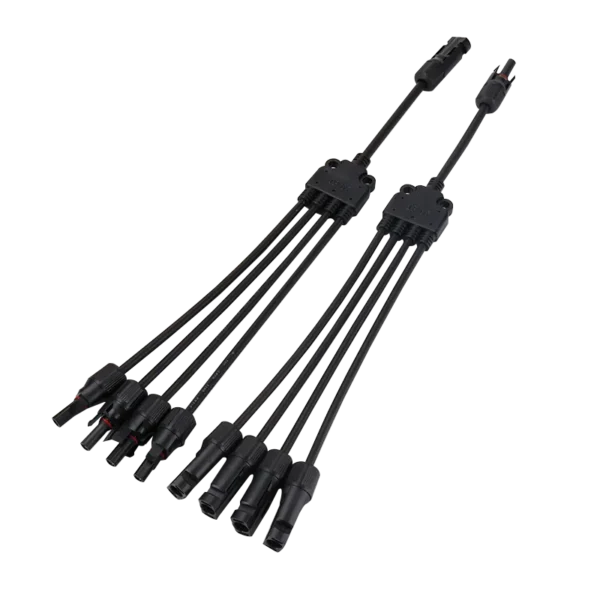

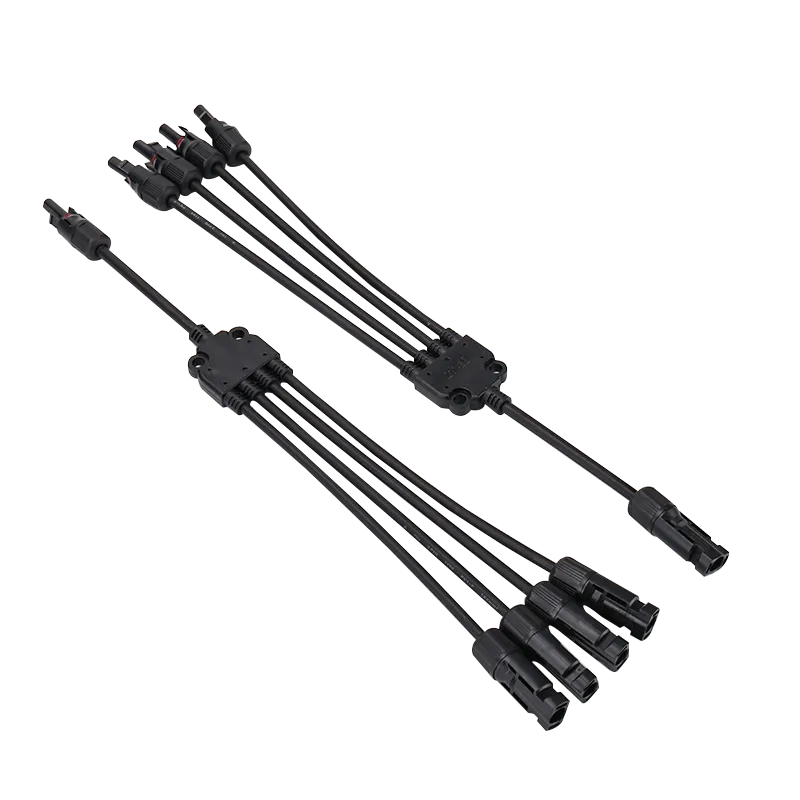

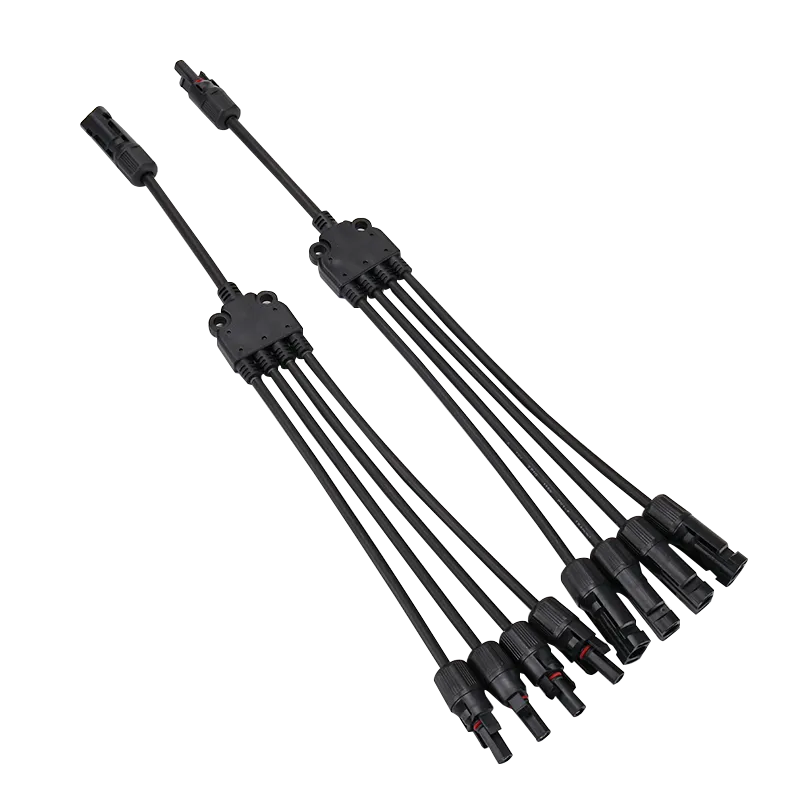

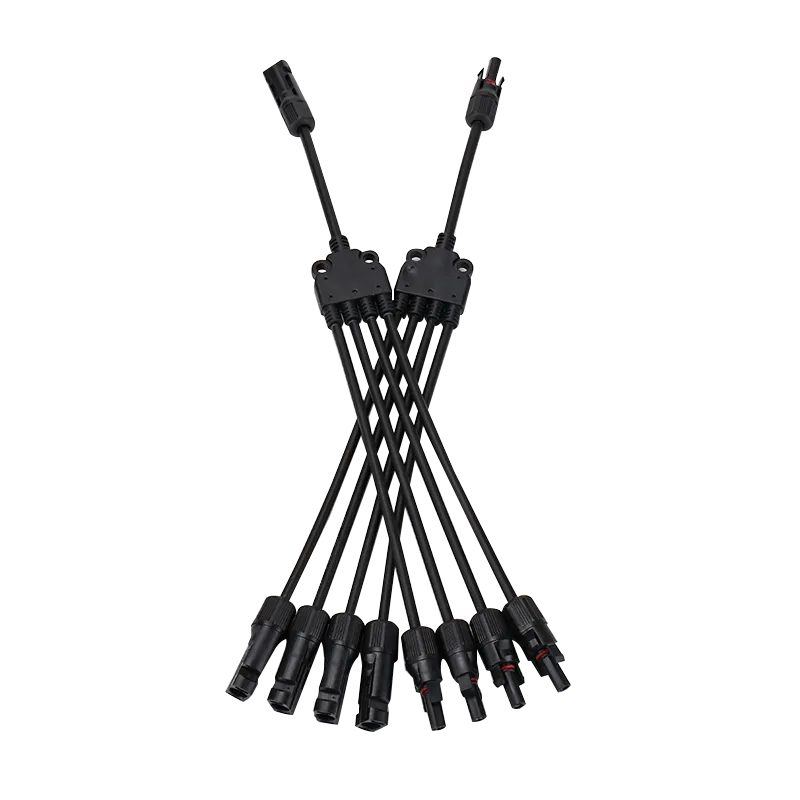

Solar connector Y5
Solar connector Y5
- They have low contact resistance and high reliability.
- solar connectors prevent the leakage of harmful substances and do not causepollution to the environment.
- They effectively reduce losses in the wiring harness andimprove system efficiency.They have comprehensive safety features that effectively prevent hazards such as short circuits, overloads, and overheating.
Additional information
Share To:
| Connector system | Ф4mm |
| Rated voltage | 1000V DC(IEC)1 |
| Rated current | 30A |
| Test voltage | 6kV(50HZ,1min.) |
| Ambient temperature range | -40℃—+90℃(IEC) -40—+75℃(UL) |
| Upper limiting temper ature | +105℃(IEC) |
| Degree of protection,mated | lp67 |
| unmated | IP2X |
| Comtact resistanceof plug connectors | 0.5mΩ |
| Safetyclass | Ⅱ |
| Contact material | Messing,verzinnt Copper Alloy,tin plated |
| Insulation material | PC/PA |
| Locking system | Snap-in |
| Flame class | UL-94-VO |
| Salt mist spray test,degree of severity 5 | IEC 60068-2-52 |
DIMENSIONAL DRAWING(MM)
