A single-phase energy meter measures residential and small business electricity consumption, providing accurate data for efficient energy management.
What is a single-phase energy meter?
A single-phase energy meter is an instrument used to measure the energy consumed in a single-phase AC circuit. It measures voltage and current, calculates active power, and accumulates energy consumption over a period of time, which is displayed in kilowatt-hours (kWh).
Single-phase energy meters are mainly used in residential buildings, small shops and other places with 220V single-phase power supply for metering and charging.
How many AC lines can it run?

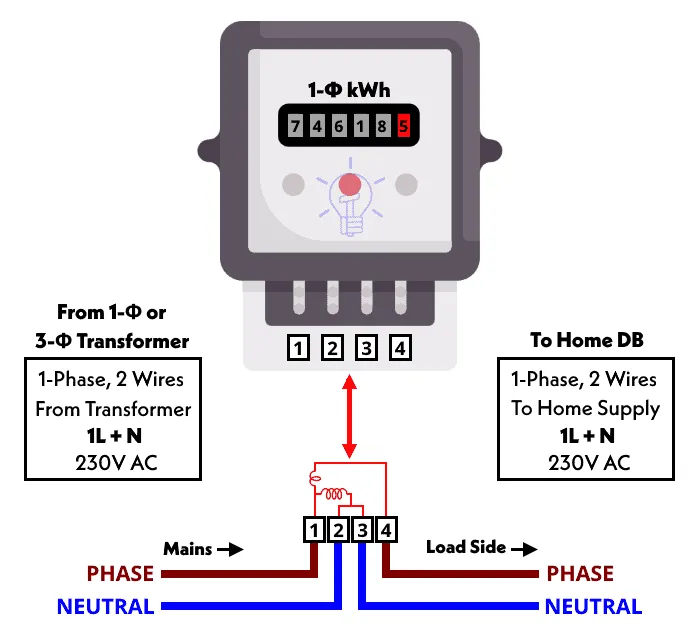

Single-phase energy meters are usually used to measure an AC line. The line consists of a phase line (live wire) and a neutral line (zero wire).
Single-phase energy meters are suitable for 120V or 230V voltage systems, depending on the power standards of the country or region.
Accuracy of single-phase energy meters
Single-phase energy meters are divided into two levels according to measurement accuracy: level 1 and level 2. The maximum allowable error of level 1 meters is ±1%, and that of level 2 meters is ±2%.
Within the current range from 0.05Ib to Imax, the error of level 1 meters is controlled within 1%. Single-phase electronic energy meters use dedicated integrated circuits and microprocessors to achieve higher measurement accuracy.
Advantages of single-phase energy meters
- High metering accuracy, long-term stable and reliable
- Low power consumption, no external power supply required
- Easy to install, compact size
- Can realize multi-rate metering and prepayment functions
- Can realize remote meter reading and control through communication module
Disadvantages of single-phase energy meters
- Can only be used for single-phase power supply, not suitable for three-phase power applications
- Limited capacity, cannot be directly connected to high-power loads
- Anti-interference ability is slightly worse than three-phase meters
- Long-term overload operation will accelerate aging
How to check the readings of a single-phase energy meter
The steps to check the reading of a single-phase energy meter are as follows:
- Find the LCD display or wheel counter
- Read the numbers from left to right, there may be a decimal point in the middle
- The decimal place (usually red) is the decimal place, which is generally not counted
- The reading unit is kWh, that is, kilowatt-hour or degree
- Subtract the last reading from the current reading to get the power consumption during this period
- If connected through a transformer, the reading must be multiplied by the transformation ratio
For example: If the reading last month is 3100 degrees and this month is 3135 degrees, the monthly power consumption is:
3135 – 3100 = 35 degrees.
FAQs
Q1: How does a single-phase energy meter work?
A1: Single-phase energy meters work on the principle of electromagnetic induction. They have a rotating aluminum disc placed between two electromagnets. The speed of the disc’s rotation is proportional to the power being consumed, which is then converted into energy readings.
Q2: What is the difference between a single-phase and three-phase energy meter?
A2: Single-phase energy meters are designed for measuring electricity in homes and small businesses with a single-phase power supply. Three-phase energy meters, on the other hand, are used in industrial and large commercial settings where there is a three-phase power supply and higher energy consumption.
Q3:How to maintain a single-phase energy meter?
A3: Single-phase energy meters are simple to maintain. Check the meter readings regularly, ensure the equipment is clean, and pay attention to any abnormal readings or equipment failures. Contact a professional electrician for inspection when necessary.
Q4:Are single-phase energy meters affected by voltage fluctuations?
A4: Yes, single-phase energy meters are more sensitive to voltage fluctuations, which may affect measurement accuracy. A stable voltage supply helps improve measurement accuracy.
Q5: Can single-phase energy meters be used for high-power devices?
A5: Single-phase energy meters are suitable for lower-power power systems and are not suitable for industrial and large commercial applications that require high power output. For high-power requirements, three-phase energy meters are recommended.
Conclusion
Single-phase energy meters offer easy installation, cost-effectiveness, and precise measurements, making them ideal for homes and small businesses. Despite some limitations, they are valuable tools for monitoring and managing energy use efficiently.
