Three-phase electronic energy meter is an indispensable and important device in modern industrial and commercial electricity measurement. With the advancement of science and technology and the development of power systems, the requirements for energy measurement are getting higher and higher.

This article will introduce the definition, working principle, selection method and advantages and disadvantages of three-phase electronic energy meter in detail, to help readers fully understand this key equipment.

Three-phase electronic energy meter definition

The three-phase electronic energy meter is an instrument used to measure active and reactive energy in a three-phase AC system.

It uses large-scale integrated circuits and digital sampling and processing technology, and has the advantages of high measurement accuracy, low power consumption, and strong anti-electricity theft capability.

Compared with traditional mechanical energy meters, electronic energy meters have achieved digital and intelligent transformation.

How does a three-phase electronic energy meter work?

The three-phase electronic energy meter is mainly composed of an energy measurement part and a microprocessor control part. The energy measurement part uses a dedicated large-scale integrated circuit to generate a pulse sequence representing the amount of energy consumed, and these pulses are sent to the microprocessor for energy measurement.

After receiving the pulse signal, the microprocessor accumulates the number of input pulses according to the pulse constant, accurately measures the consumed energy, and then transmits data through various interfaces to achieve different control functions.

The electronic energy meter can measure positive active energy, reverse active energy and reactive energy, and has event recording, communication and other functions.

It supports time-sharing metering, and can accumulate active energy during peak, shoulder, valley and other periods, as well as total energy consumption. This helps to balance the load of the power grid.

Choosing the right three-phase electronic energy meter

Choosing a suitable three-phase electronic energy meter requires considering multiple factors, including:

  • Number of phases: Choose the corresponding energy meter according to whether the system is single-phase or three-phase. Single-phase energy meters are used in single-phase AC systems, while three-phase energy meters are used in three-phase AC systems.
  • Current specifications: Different models of three-phase energy meters support different current specifications. It is necessary to select the appropriate current specification according to the current size of the actual power consumption equipment.
  • Communication protocol: Electronic energy meters support different communication protocols, such as Modbus, M-Bus, etc. It is necessary to select the appropriate communication protocol according to the actual application scenario.
  • Functional requirements: In addition to the basic energy metering function, some electronic energy meters also have extended functions such as event recording, demand management, and prepayment. Energy meters with corresponding functions can be selected according to actual needs.
  • Accuracy level: Select the accuracy level that meets the application requirements to ensure the accuracy of the measured data.
    Functional requirements: Select an energy meter with appropriate functions (such as remote meter reading, data storage, abnormal alarm, etc.) according to the use environment and needs.

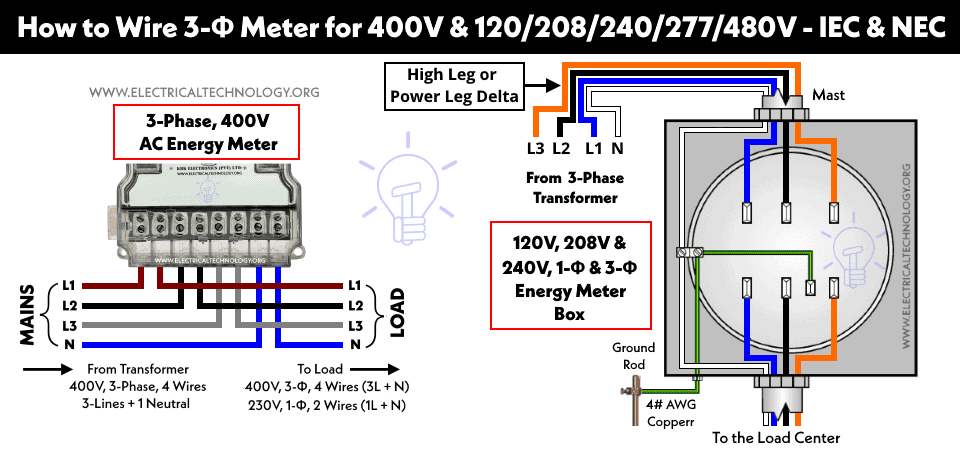

  • Installation method: Determine the installation method of the energy meter (such as rail type, wall-mounted, etc.) to adapt to the actual installation conditions.
  • Brand and quality: Choose electronic energy meters from well-known brands, which usually have better quality and after-sales service guarantees, which can reduce the trouble in use and maintenance.

Disadvantages of three-phase electronic energy meter

Although it has many advantages, it also has some limitations:

  • Susceptible to electromagnetic interference: Electronic components are easily disturbed by electromagnetic fields, which may cause measurement errors. Appropriate shielding and protection measures need to be taken.
  • Susceptible to high temperature: High temperature environment may affect the performance and life of electronic components. Attention needs to be paid to the installation environment of the energy meter.
  • High cost: Compared with mechanical energy meters, electronic energy meters have higher manufacturing and maintenance costs.
  • Complexity: The internal structure of electronic energy meters is complex, and troubleshooting and repair require professional technical support.
  • Power supply dependence: Electronic energy meters require a stable power supply and may not work properly in the event of a power outage.

Rated current of three-phase electronic energy meter

The rated current of a three-phase electronic energy meter refers to the maximum current that the meter can accurately measure without distortion. It is crucial to choose a meter with a rated current suitable for the expected maximum loads in the three-phase system. This ensures accurate energy measurement and prevents overheating or damage to the meter during operation.

By adhering to these considerations, users can effectively manage energy usage and ensure the reliable operation of three-phase electronic energy meters in various applications.

FAQs

Q1:What is the metering principle of a three-phase electronic energy meter?

A1:The core of a three-phase electronic energy meter is to measure the voltage, current and power factor of each phase in a three-phase power system, calculate the active power and reactive power, and then multiply by time to get the consumed energy.

Q2: Why is the rated current of a three-phase electronic energy meter so important?

A2: The rated current of a three-phase electronic energy meter refers to the maximum current range that it can safely and accurately measure. Selecting the appropriate rated current ensures that the energy meter is not affected by current overload during operation, thereby ensuring accurate energy measurement and long-term stability of the equipment.

Q3: How does a three-phase electronic energy meter deal with the effects of harmonics in the power grid?

A3: Three-phase electronic energy meters usually have a certain degree of harmonic resistance, and use filtering technology and digital signal processing to reduce the impact of harmonics in the power grid on measurement accuracy. However, in environments where there are serious harmonic problems in the power grid, additional harmonic filters or regular calibration and adjustment may be required to ensure accurate energy measurement.

Conclusion

In summary, three-phase electronic energy meters have been widely used in industrial and commercial fields due to their advantages of high precision, multi-function and intelligence.

Although it also has some disadvantages, such as high price and short service life, with the continuous advancement of technology, it is believed that more optimized three-phase electronic energy meters will be available in the future.
