The shift towards renewable energy has spurred notable advancements in technologies that utilize natural resources like solar and wind energy. Among these innovations, photovoltaic cables, commonly known as PV wires, are essential components in sustainable energy systems. They are vital for transmitting electricity from solar panels to different parts of a system and eventually to the power grid or storage units.
What is a photovoltaic cable
Photovoltaic cables are specialized wires used primarily in PV systems and solar power plants. They offer several advantages, including resistance to high temperatures, cold, oil, acids, and alkalis. Additionally, they are protected against ultraviolet rays, flame retardant, environmentally friendly, and have a long lifespan. These attributes make them suitable for use in challenging weather conditions.
These cables are often exposed to sunlight as solar systems frequently operate in environments with high temperatures and intense UV radiation. In Europe, for instance, sunny conditions can cause solar system temperatures to soar up to 100°C. To maximize efficiency, Europe employs distributed PV systems. Various materials such as PVC, rubber, TPE, and high-quality cross-linked materials are currently available for use.
However, despite the availability of specialized photovoltaic cables, some contractors opt for standard rubber cables rated at 90°C or PVC cables rated at 70°C for outdoor use to cut costs. This choice can significantly reduce the lifespan of the solar system.
The unique characteristics of photovoltaic cables stem from their special insulation and sheath materials known as cross-linked polyethylene. Through accelerator irradiation, the molecular structure of these materials is altered, enhancing their performance in various aspects.

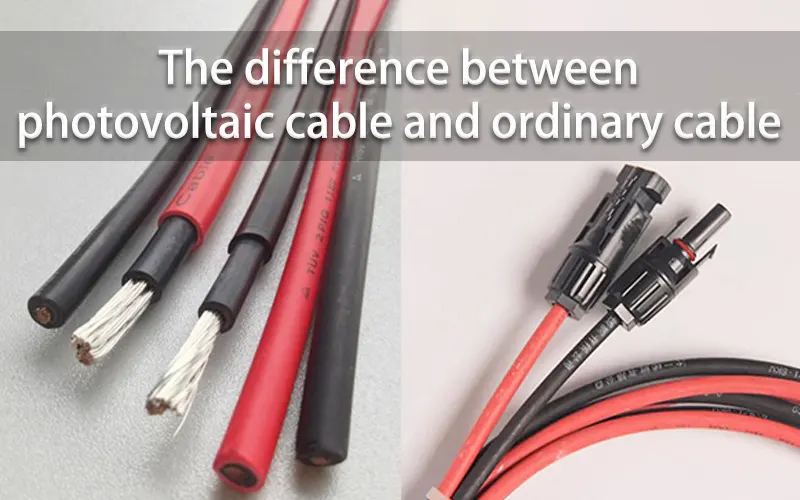

What Distinguishes Photovoltaic Cables From Other Cables?
Photovoltaic Cable
- Conductor: Made from copper or tinned copper.
- Insulation: Uses irradiated cross-linked polyolefin.
- Sheath: Also made from irradiated cross-linked polyolefin.
Ordinary Cable
- Conductor: Composed of copper or tinned copper.
- Insulation: Typically made from PVC or XLPE.
- Sheath: Constructed with PVC.
Photovoltaic solar cables possess distinct characteristics that set them apart from regular cables. Here are some notable features of these renewable energy cables:
- UV Resistance: These cables are coated with materials that resist ultraviolet light, ensuring they do not degrade over time due to sun exposure.
- Temperature Resistance: PV wires are designed to endure wide temperature variations, which is essential for outdoor use where conditions can change significantly.
- High Voltage and Current Capacity: Photovoltaic cables can handle the high voltage outputs from solar panels, which exceed those of standard household electrical systems.
- Durability and Longevity: The robust materials used in photovoltaic cables are intended to last for decades in outdoor settings.
These features ensure that photovoltaic cables remain functional throughout the lifespan of a solar power system, enhancing the system’s efficiency and safety.
Types of photovoltaic cable
In a photovoltaic system, cables, though not a major cost component, are crucial as they act like the system’s “blood vessels.” They connect components such as inverters, distribution boxes, and power grids, significantly affecting the system’s safety, stability, efficiency, and profitability. Photovoltaic cables link the power generation area with the energy storage section, where energy is converted and stored in solar cells. As off-grid solar batteries become more common in households, selecting the right cables during system design becomes vital. Photovoltaic cables can be categorized mainly into DC and AC cables based on their functions.
DC Cables
- Series Connection: Cables connecting components in series.
- Parallel Connection: Cables linking strings and connecting strings to DC distribution boxes (combiner boxes).
- Inverter Connection: Cables running between the DC distribution box and the inverter.
AC Cables
- Inverter to Transformer: Cables connecting the inverter to the step-up transformer.
- Transformer to Distribution Unit: Cables linking the step-up transformer to the power distribution unit.
- Distribution to Grid or Users: Cables connecting power distribution units to the grid or end-users.
Why choose a photovoltaic cable
In photovoltaic power plants, many DC cables must be installed outdoors, where they face challenging environmental conditions. The choice of cable materials should consider resistance to ultraviolet rays, ozone, extreme temperature fluctuations, and chemical exposure. Using standard cables in such environments can lead to sheath damage and insulation breakdown. These issues not only harm the cable system but also increase the risk of short circuits. Over time, this could lead to fires or personal injuries, significantly reducing the system’s lifespan.
Therefore, it is crucial to use specialized photovoltaic cables and components in solar power installations. These PV-specific cables provide excellent resistance to weather, UV rays, and ozone while enduring a broader range of temperature variations.
How photovoltaic cable operate at high temperatures
When sunlight strikes a solar panel, the panel transforms solar energy into direct current (DC) energy. This energy must pass through various electrical devices for processing before it can be connected to the power grid.
Photovoltaic cables are specialized wires designed to link these electrical components. They are typically required to function in outdoor environments characterized by high temperatures and humidity.
To meet these demanding conditions, photovoltaic cables must possess the following key features:
Durability
Given their prolonged use in outdoor settings, photovoltaic cables must exhibit exceptional durability, ensuring stable and long-term performance without failure.
Rated Voltage
Solar power systems operate at high voltages. As such, the cables must have a sufficient rated voltage capacity to handle these levels safely and maintain system stability.
Insulation Properties
Effective insulation is crucial for photovoltaic cables to prevent electrical breakdowns and other issues that could lead to faults or accidents.
Quality Assurance
To guarantee the safe and reliable functioning of solar power systems, photovoltaic cables must adhere to stringent international and industry standards, necessitating rigorous quality control measures.
Photovoltaic cables are widely utilized in commercial, industrial, and residential energy storage systems, as well as in large-scale solar power plants. They play a pivotal role in connecting and transmitting energy across the entire photovoltaic power generation system.
It is important to note that photovoltaic cables vary in their rated voltage and temperature tolerance. Selecting the appropriate cable type is essential for ensuring the safe and efficient operation of solar power systems.
