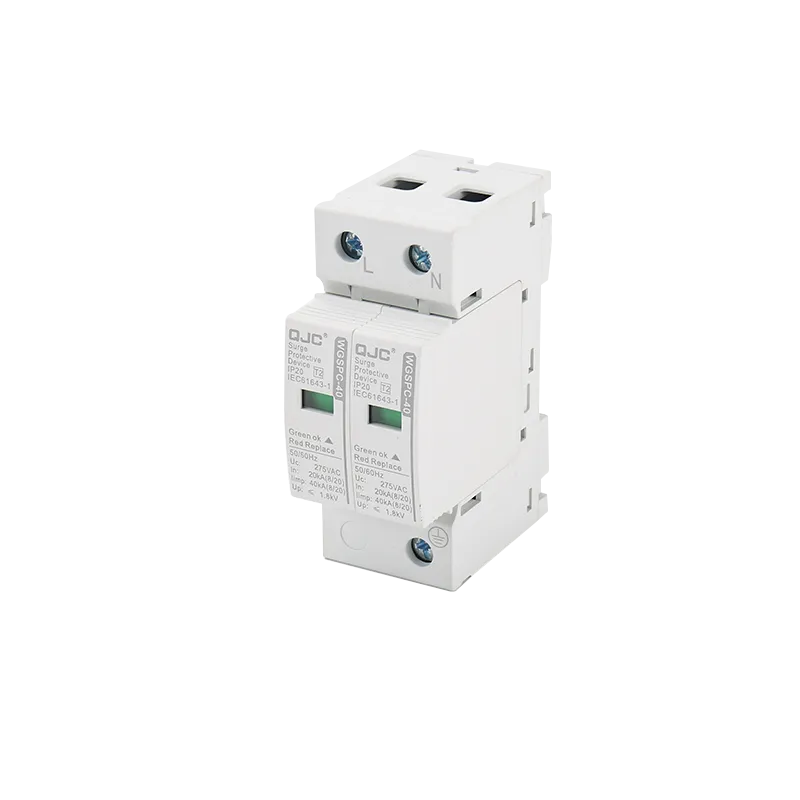

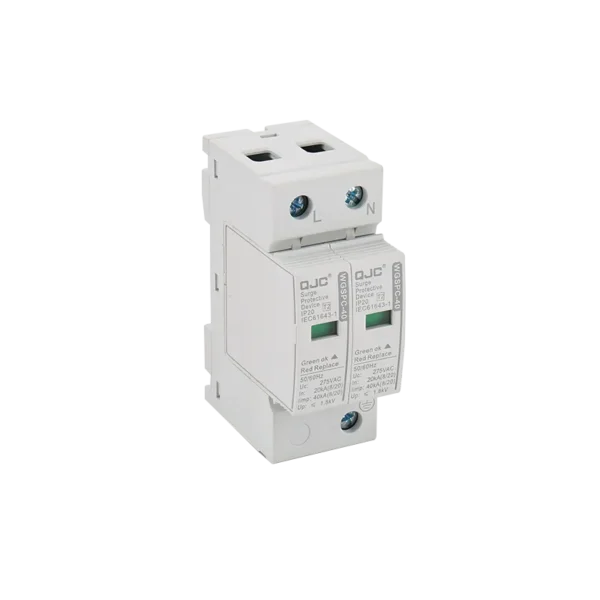

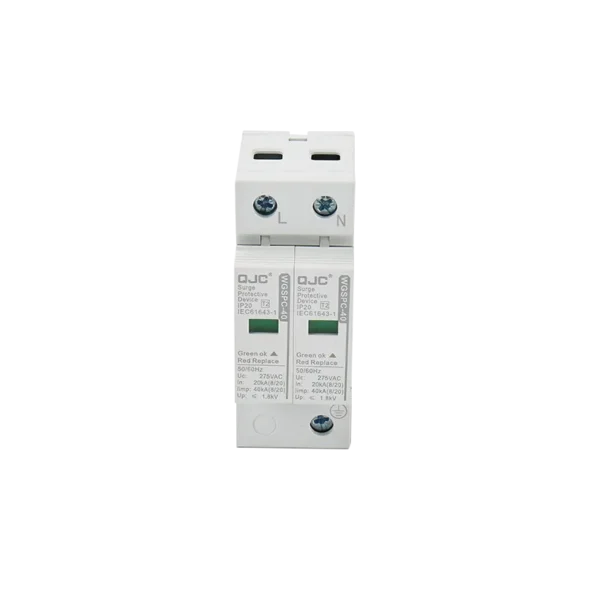

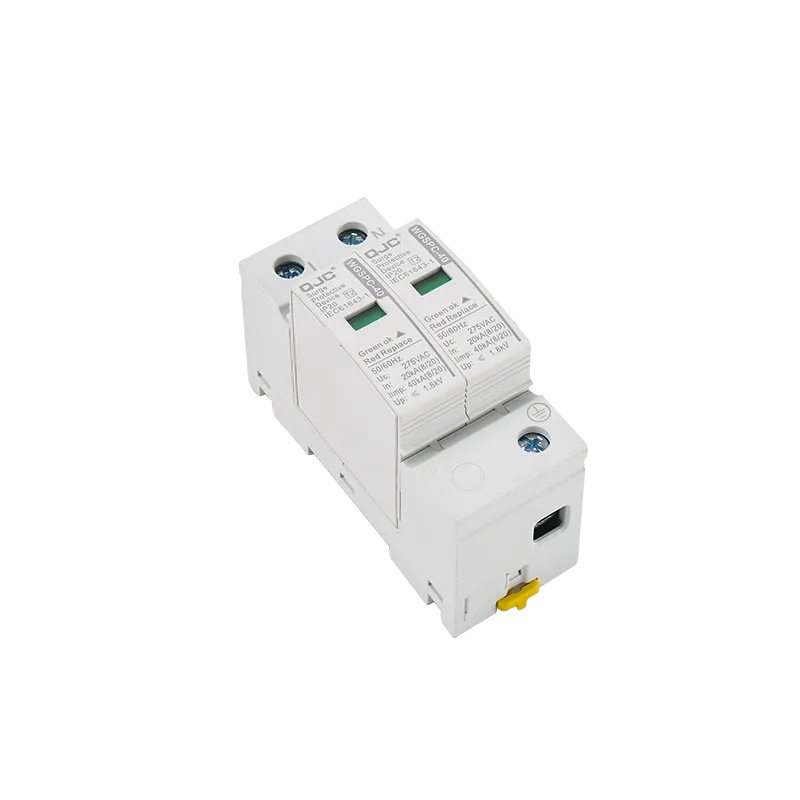

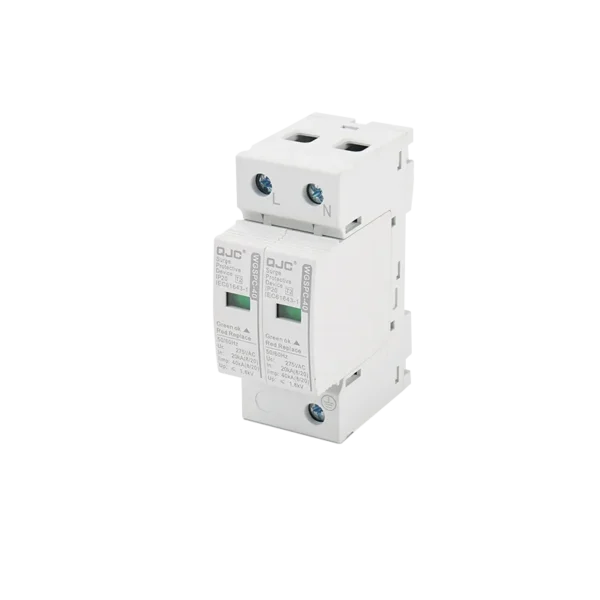

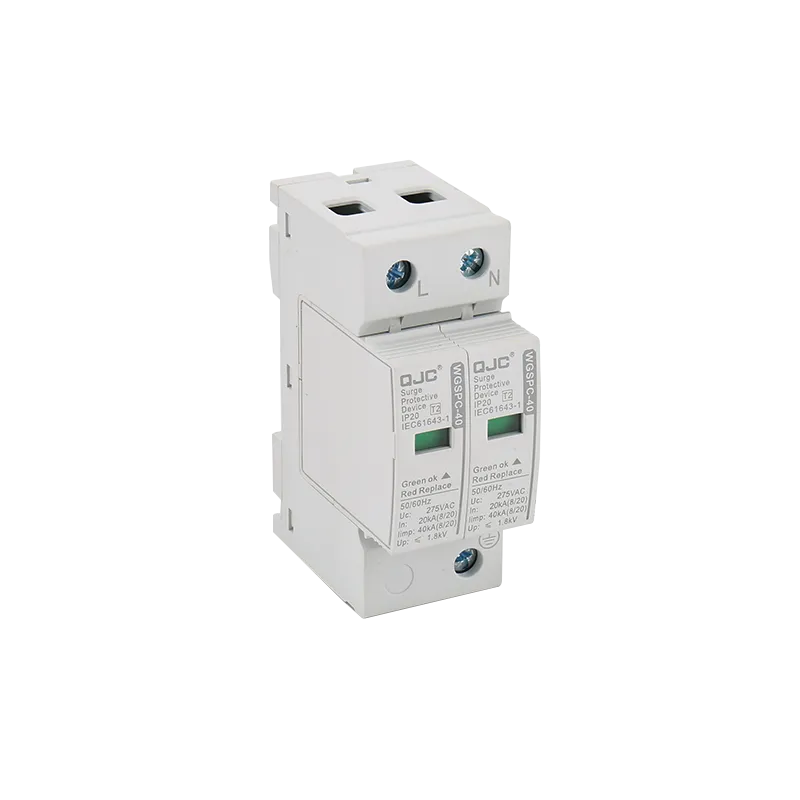

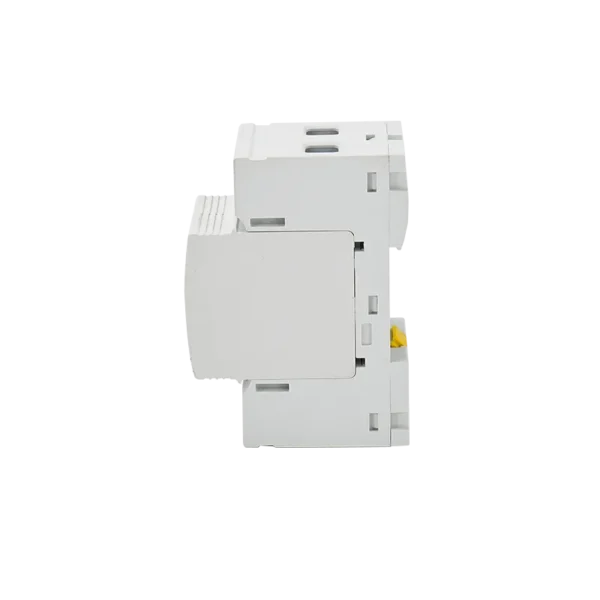

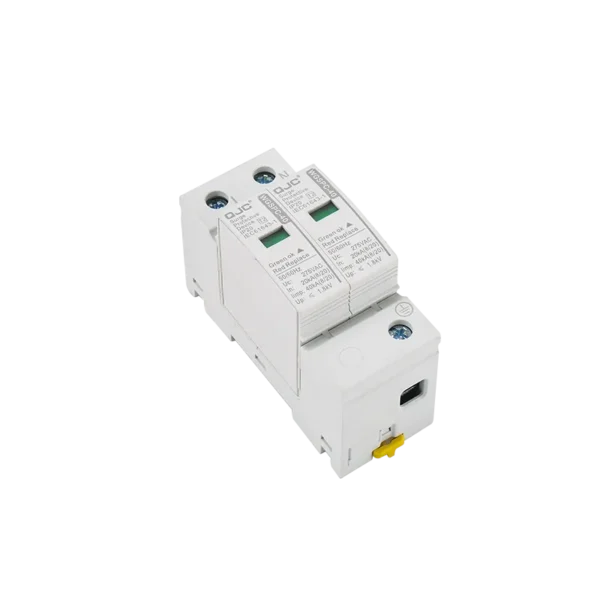

WGSPC-40 40KA AC Surge Protective Device Manufacturers
WGSPC-40
- Consistent pluggability (even for N/PE spark gap)
- Own developed technology to manufacture MOV
- Thermal disconnect device for each individual connector
- Optical,mechanical status indication for the individual arresters
- With or without floating remote indication contact
- Suitable for almost all network conflgurati ons
- Din rail mountable (35 mm)
Additional information
Share To:
Product Parameter (Specification)
| Type | WGSPC-40 | ||
| Rated voltage (max. continuous a.c.voltage) [Uc ] | 275V or 385V | ||
| Nominal discharge current (8/20)[ In ] | 10KA | 20KA | 30KA |
| Maximum discharge current [ Imax ] | 20KA | 40KA | 60KA |
| Voltage protection level [ Up ] | ≤1.5kV | ≤1.8kV | ≤2.2kV |
| Response time [ tA ] | ≤25ns | ||
| Max.backup fuse | 125A gL/gG | ||
| Operating temperature range [ Tu ] | -40℃~+70℃ | ||
| Cross-sectional area | 1.5mm~25mm solid / 35mm flexible | ||
| Mounting on | 35mm DIN rail | ||
| Enclosure material | Purple (module)/light gray (base) thermoplastic, UL94-V0 | ||
| Dimension | 1 mod | ||
| Test standards | IEC 61643-1; GB 18802.1; YD/T 1235.1 | ||
| Certification | CE ROHS ISO9001 CQC | ||
| Type of remote signalling contact | Switching contact | ||
| Switching capacity a.c | 250V/ 0.5A | ||
| Switching capacity d.c | 250V/0.1A; 125V/0.2A; 75V/0.5A | ||
| Cross-sectional area for remote signalling contact | Max.1.5mm? solid / flexible | ||
